ambient compact

Application area: Normal care
Product group: Wall supply units (decorative)

Perfect supply in the most compact space

To what extent can a medical supply unit be designed to be compact without losing any of the required media connectivity?

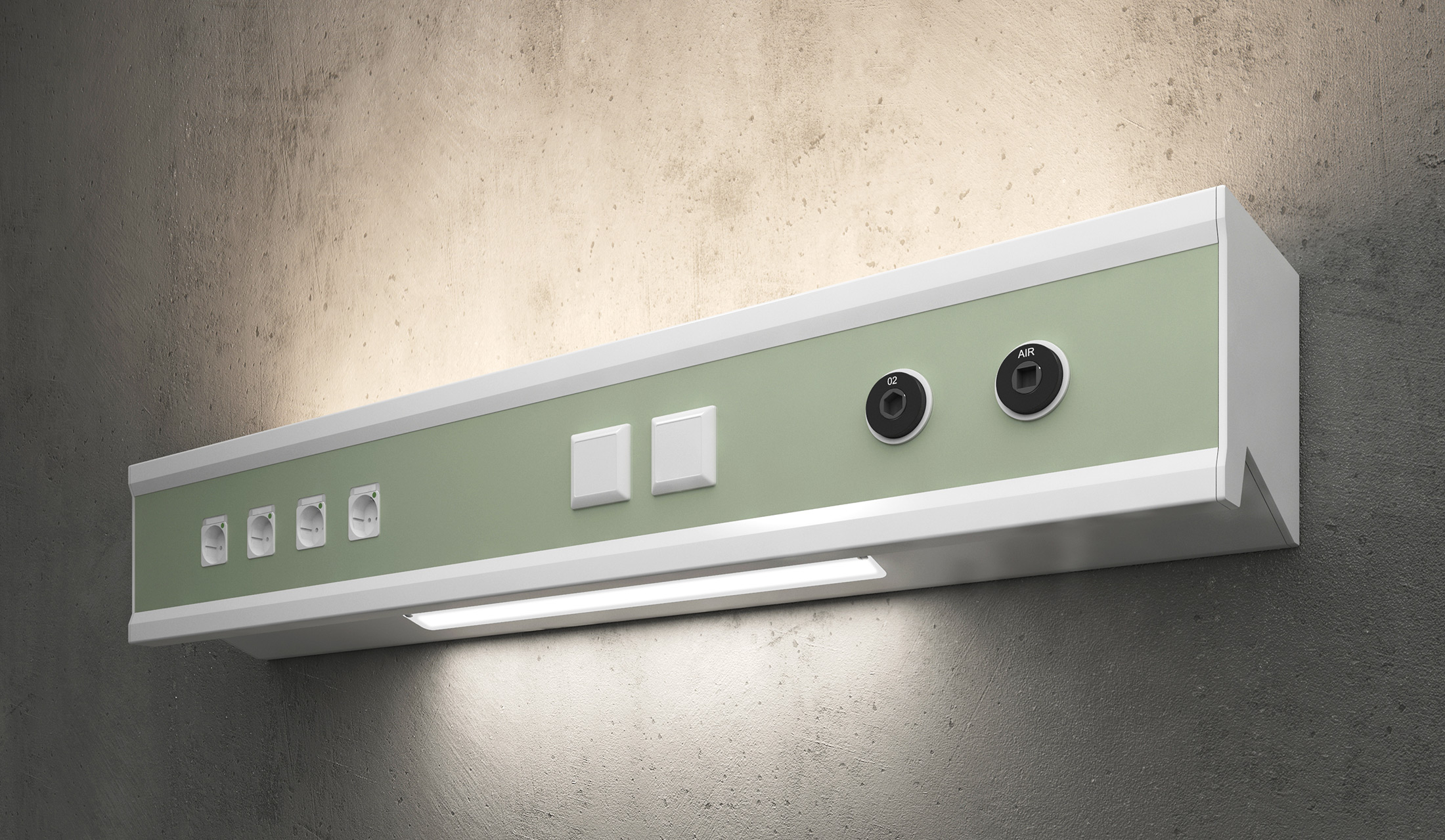

With ambient compact our developers have impressively answered this question. Its housing has the same small dimensions as ambient front. The trick. Through the positioning of additional installation elements on the front, there is space for additional media connections such high and low voltage, data and communications and medical gases. And different lighting solutions are also possible in the compact unit. This means that ambient compact is the ideal solution for a high supply requirement in cramped space situations.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology
Nominal voltage: 230 V - 240 V / 50 Hz
Protection class: I
Connection type: Plug connection
Connection cross-section: 1.5mm² max.
Protection type: IP 20

Reading light (LED): Output ≙ 11 W / 23 W
Reading light (T5 fluorescent tubes): Output ≙ 24 W / 2 x 24 W
Indirect lighting (LED): Output ≙ 40 W / 53 W
Indirect lighting (T5 fluorescent tubes): Output ≙ 2 x 39 W
Night light (LED): Output ≙ 4.3 W

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar

General information
Media current feed: Rear, from top or side
Décors: Powder or foil coating
Optimum assembly height: 1650mm (rail bottom edge)
Optional light control: DALI DIM

Standard design

Equipment features
high-voltage technology
Read more…

High-voltage current technology
6 mains sockets, brand Peha (COMPACTA)
6 potential equalisation sockets (POAG)

Equipment features
communications technology
Read more…

Communications technology
1 data socket, RJ 45, 2 pcs, brand Peha (COMPACTA)
2 hollow wall sockets, Ø 68mm (e.g. for nurse call button)

Equipment features
lighting technology
Read more…

Lighting technology
Reading light (LED): Output ≙ 11 W
Indirect lighting (LED): Output ≙ 40 W

Equipment features
medical gas technology
Read more…

Medical gas technology
1 gas tapping point oxygen (O²), brand modul
1 gas tapping point compressed air (Air), brand modul

General information
Rear feed
Dimensions (W x H x D): 1400 mm x 200 mm x 185 mm
Décor: Powder coating according to RAL colour scheme

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
