ambient simplex

Application area: Normal care
Product group: Wall supply units (decorative)

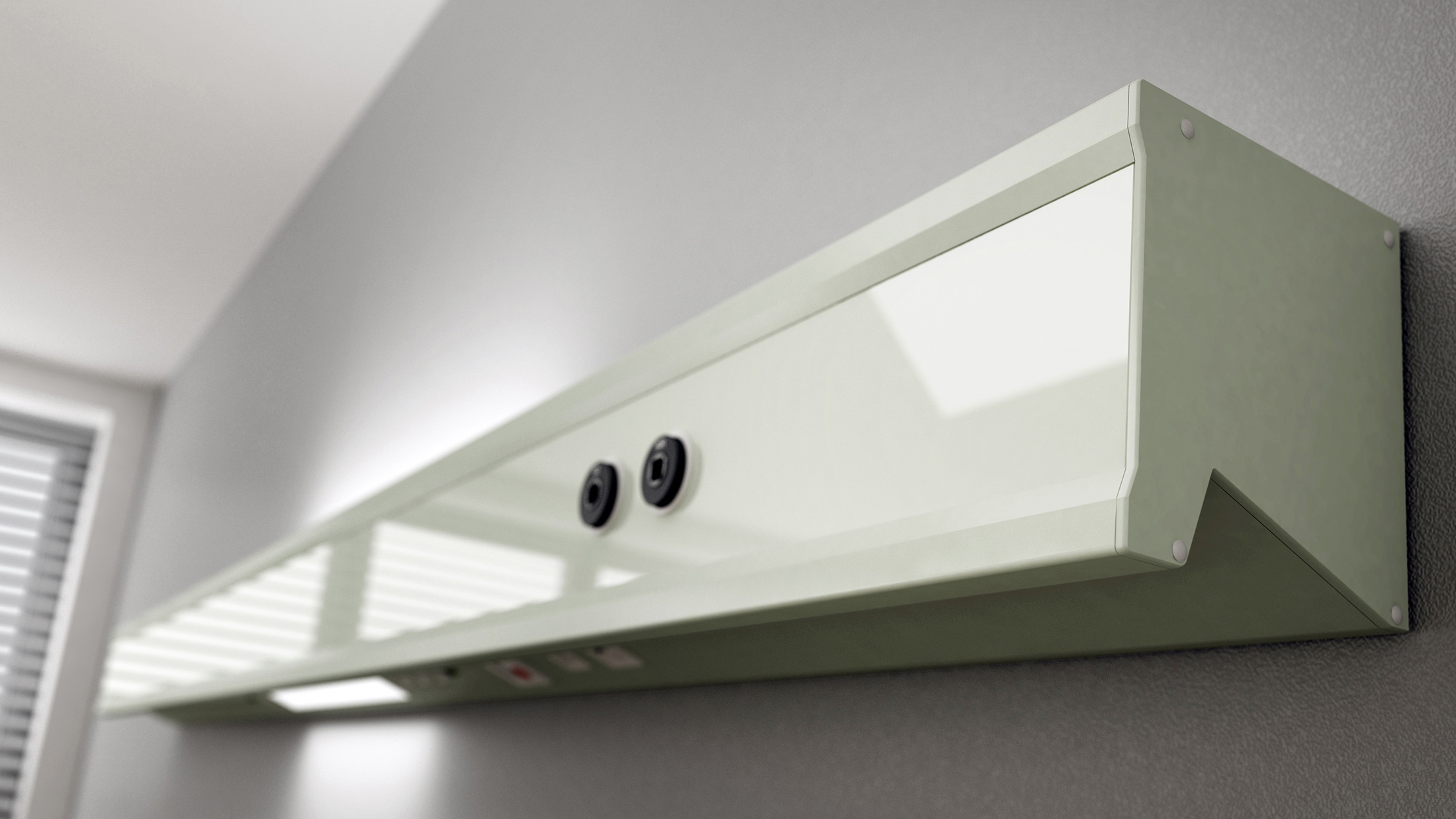

Beautiful front with lots behind!

Be it the fine wood décors in the various structures, fronts in a range of bright colours or elegant patterns – ambient simplex is streets ahead in terms of taste.

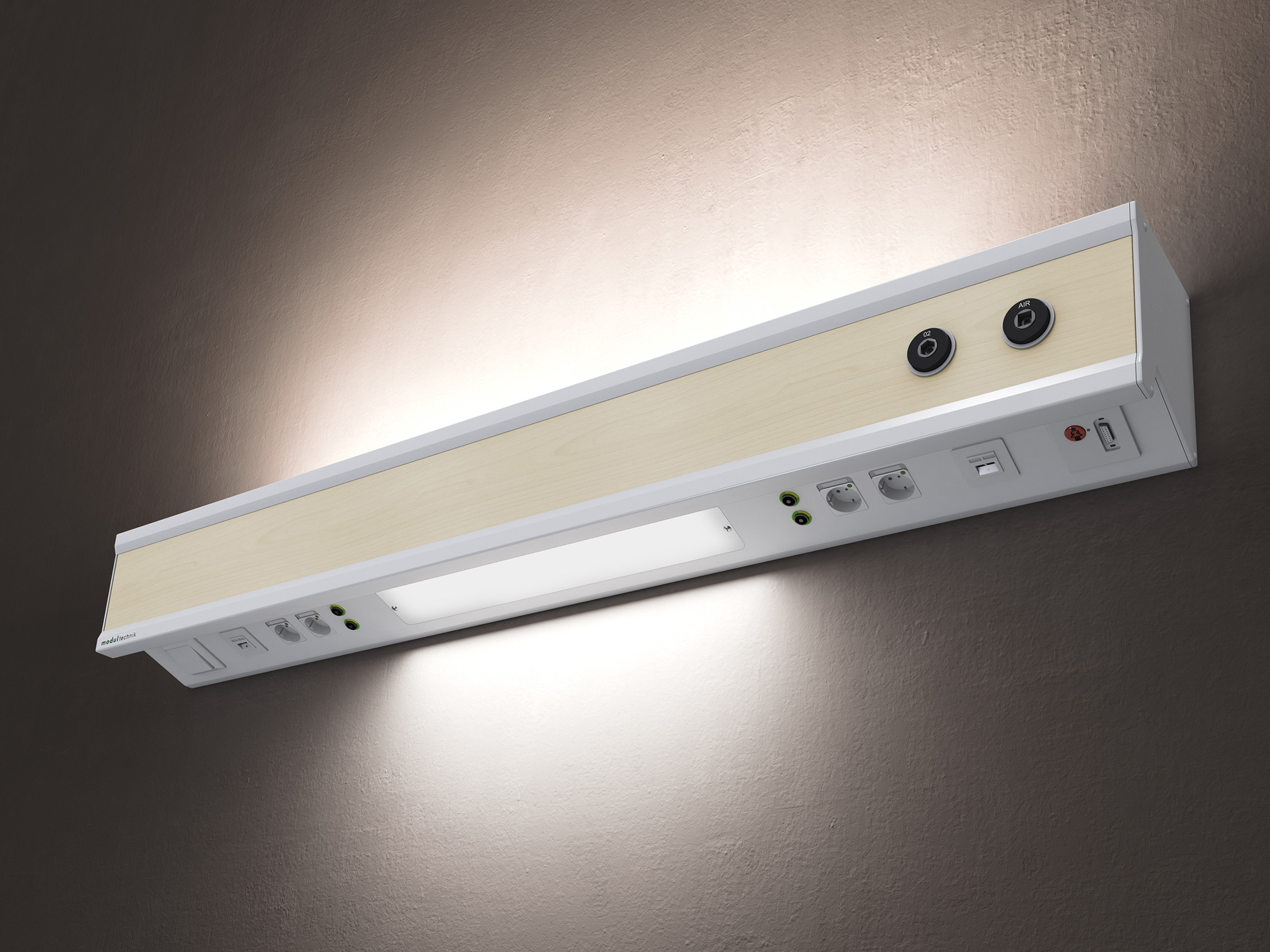

The connections for high and low voltage current, data and communications which we combine according to your requirements, are concealed behind the pull-down screen. Here the various lighting variants also ensure the best ambient light and cosy reading light options. Indirect room lighting can also be integrated on the top side.

The outlets for medical gases are accessible from the front in this variant.

Example decors

MEV 8000 Beispieldekore

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology
Nominal voltage: 230 V - 240 V / 50 Hz
Protection class: I
Connection type: Plug connection
Connection cross-section: 1.5mm² max.
Protection type: IP 20

Reading light (LED): Output ≙ 23 W
Reading light (T5 fluorescent tubes): Output ≙ 24 W / 2 x 24 W
Indirect lighting (LED): Output ≙ 53 W
Indirect lighting (T5 fluorescent tubes): Output ≙ 2 x 39 W
Night light (LED): Output ≙ 4.3 W

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar

General information
Media current feed: Rear, from top or side
Décors: HPL-laminate or melamine resin coating
Optimum assembly height: 1650mm (rail bottom edge)
Optional light control: DALI DIM

Standard design

Equipment features
high-voltage technology
Read more…

High-voltage current technology
6 mains sockets, brand Peha (COMPACTA)
6 potential equalisation sockets (POAG)

Equipment features
communications technology
Read more…

Communications technology
1 data socket, RJ 45, 2 pcs, brand Peha (COMPACTA)
2 hollow wall sockets, Ø 68mm (e.g. for nurse call button)

Equipment features
lighting technology
Read more…

Lighting technology
Reading light (T5 fluorescent tubes): Output ≙ 24 W
Indirect lighting (T5 fluorescent tubes): Output ≙ 2 x 39 W

Equipment features
medical gas technology
Read more…

Medical gas technology
1 gas tapping point oxygen (O²), brand modul
1 gas tapping point compressed air (Air), brand modul
1 gas tapping point vacuum (Vac), brand modul

General information
Rear feed
Dimensions (W x H x D): 1800 mm x 200 mm x 185 mm
Décor: R 4889 Bella Noce schoko (melamine resin-coated)

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
