comfort

Application area: Normal care
Product group: Wall supply units (decorative)

It‘s all in the name for patients and staff

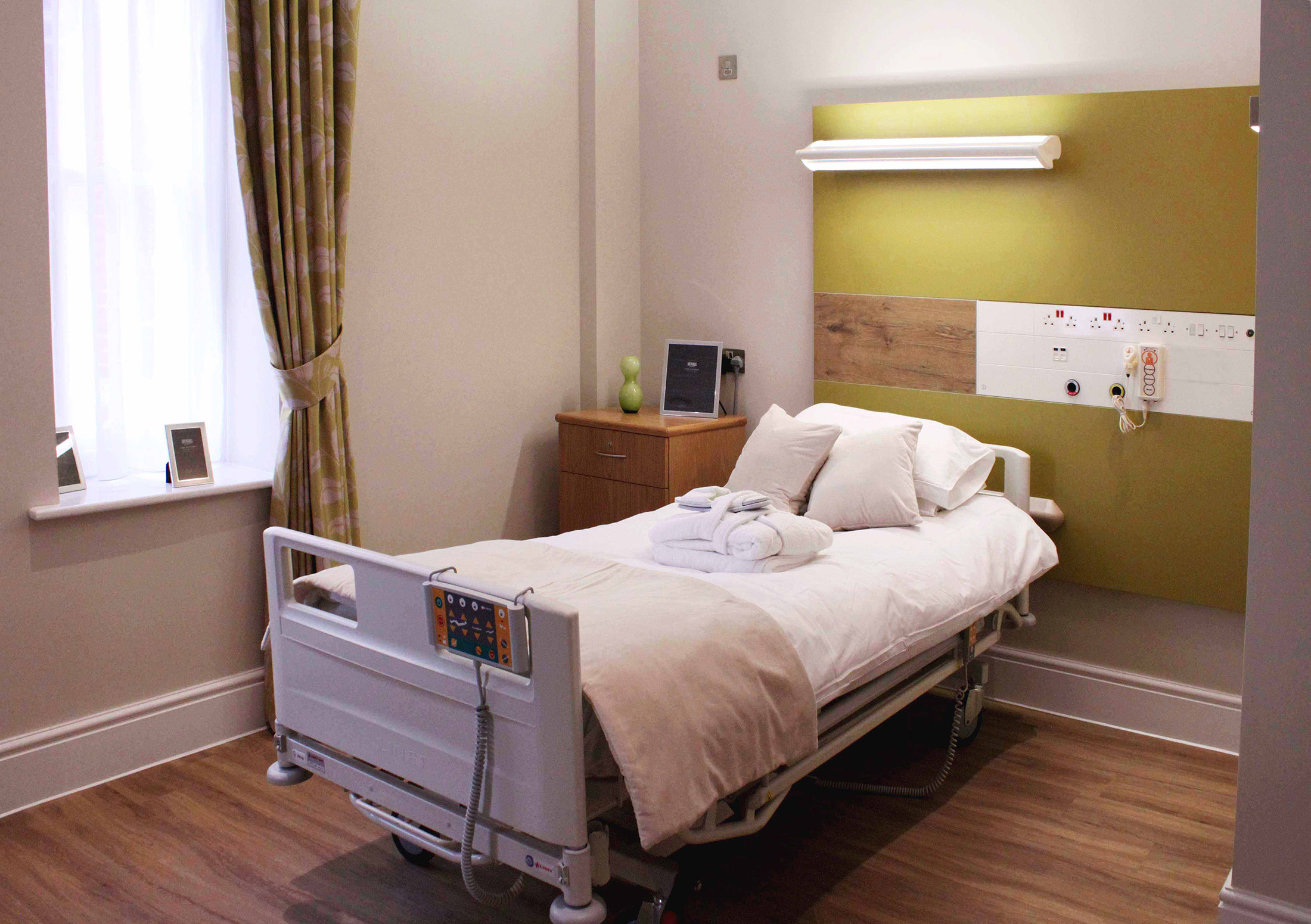

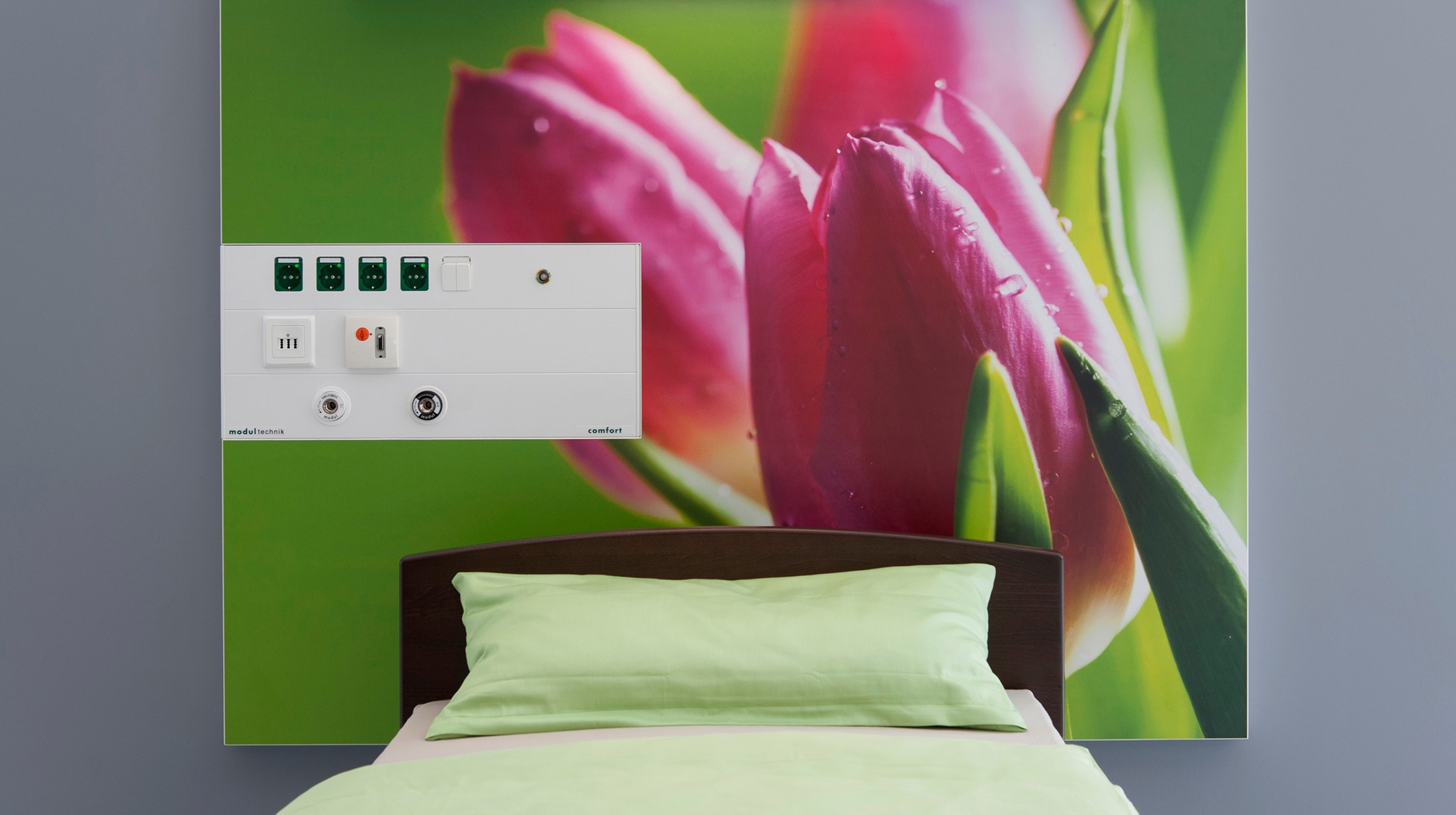

Modern wall design or medical supply unit? In the comfort model the eye is initially drawn to the high-quality real wood veneer finish of the surfaces or to the individually selectable graphics or photo images.

That this is a sophisticated medical supply system with all the necessary and individually combinable media connections, is hard to believe even at second glance. Only 65 mm in height, comfort is only slightly thicker than a wall painting yet includes everything that is required in Normal Care.

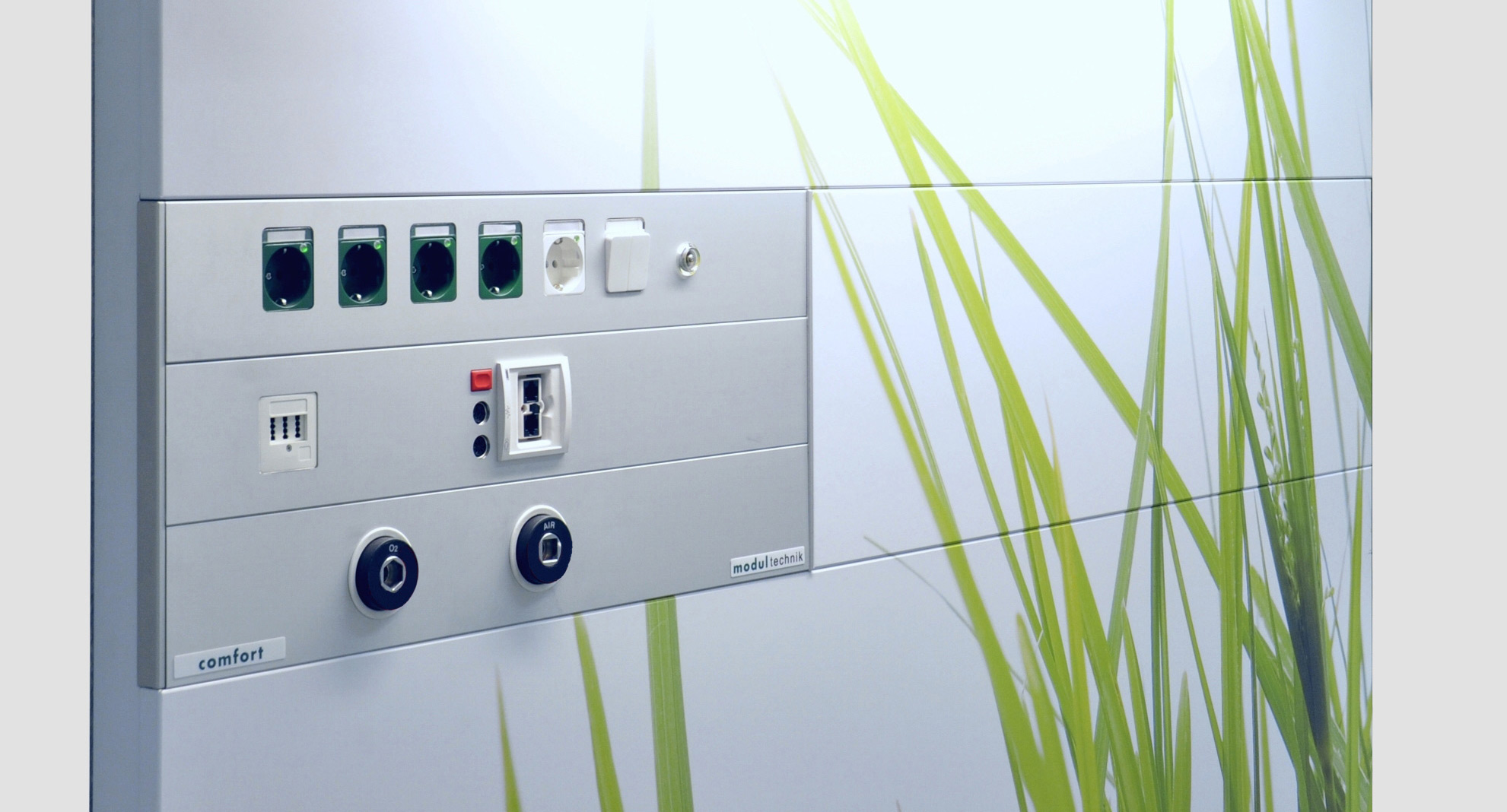

The connections are easily accessible and at optimum working height on the front of the decorative unit. On request the connector panel can be concealed by a matching slide cover. One hand movement and the technology completely disappears, and with another everything is immediately accessible.

You can also use comfort to be creative with patient and room lighting as there are many tasteful designs of lighting systems to choose from.

comfort? Of course! Coming to your nursing rooms soon!

Example decors

MEV 8000 Beispieldekore

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar

General information
Media current feed: Rear
Optional equipment rail: Front-mounted
Material of optional equipment rail: Stainless steel
Number of media channels: One to three
Décors: HPL-laminate or melamine resin coating
Optional patient lamp Front-mounted

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
