IV 1054 + modulux pure + FS 4500

Application area: Intensive care
Product group: Complete solution

Diverse combinations are our strength

modul  technik‘s greatest strength is reflected in the countless combination options of the various system ­components. This becomes clear, for example, in the IV 1054,
modulux pure and FS 4500 systems which have been closely coordinated to each other.

The central media supply is provided via the IV 1054 which can be designed as a single, double or triple-channel version and is supplied via a central connection point with all media. modulux pure positioned above includes various technical light components which provide indirect room lighting, examination lighting and patient reading lights. Further media and connections, e.g. for medical gases, can also be integrated into modulux pure.

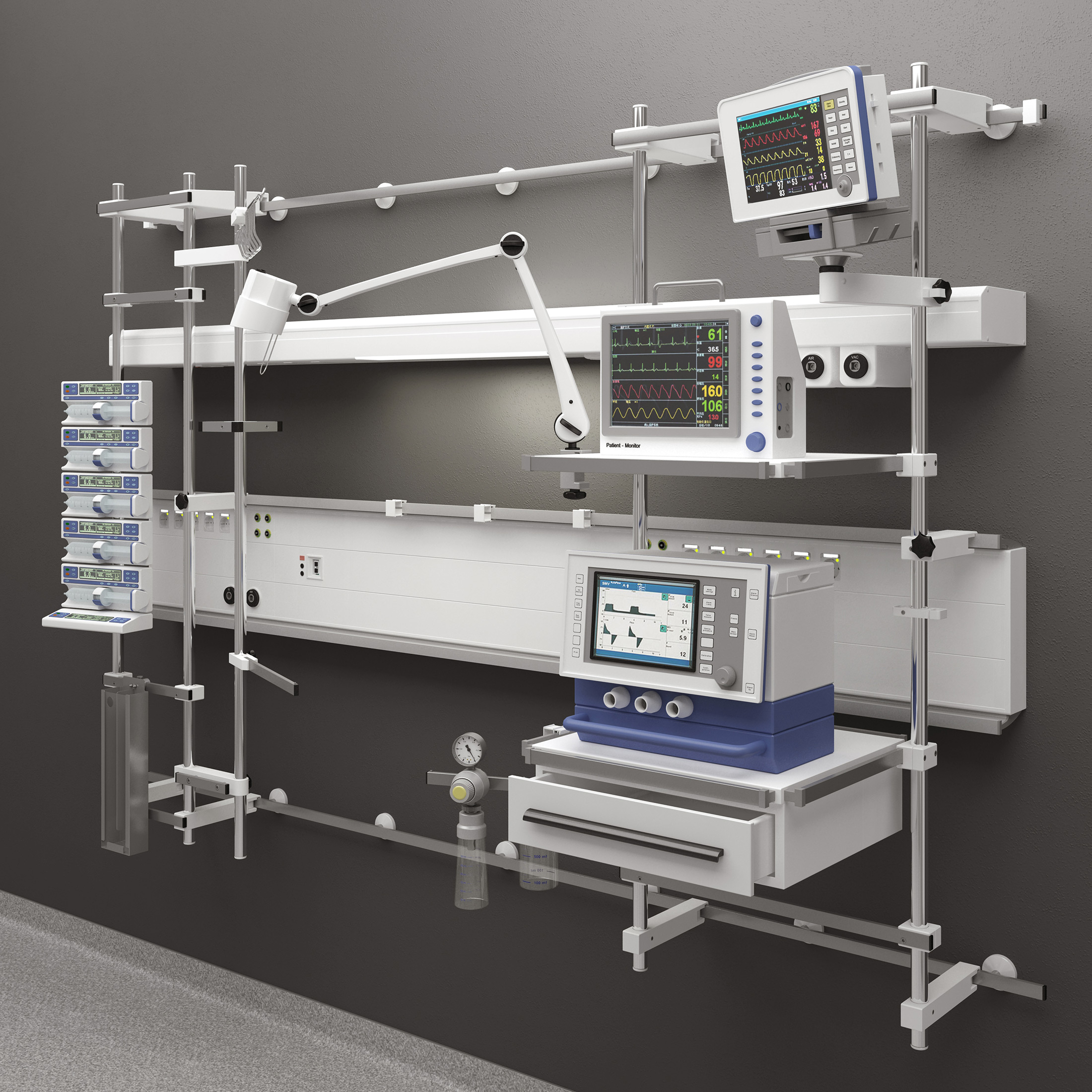

The combination example is completed with the flexible FS 4500 apparatus carrier system.
Here all devices, pumps, infusions and materials required in intensive care always have their place ready to hand. This is ensured by the wide equipment range which includes equipment rails, drawers, retractable keyboards, equipment consoles and infusion holders.

We will assemble the system according to what you want. Depending on the treatment need, the position of individual accessory parts can also be changed at any time with just a few hand movements.

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
