IZM 2560

Application area: Intensive care
Product group: Partition wall systems

Partition wall systems to include everything

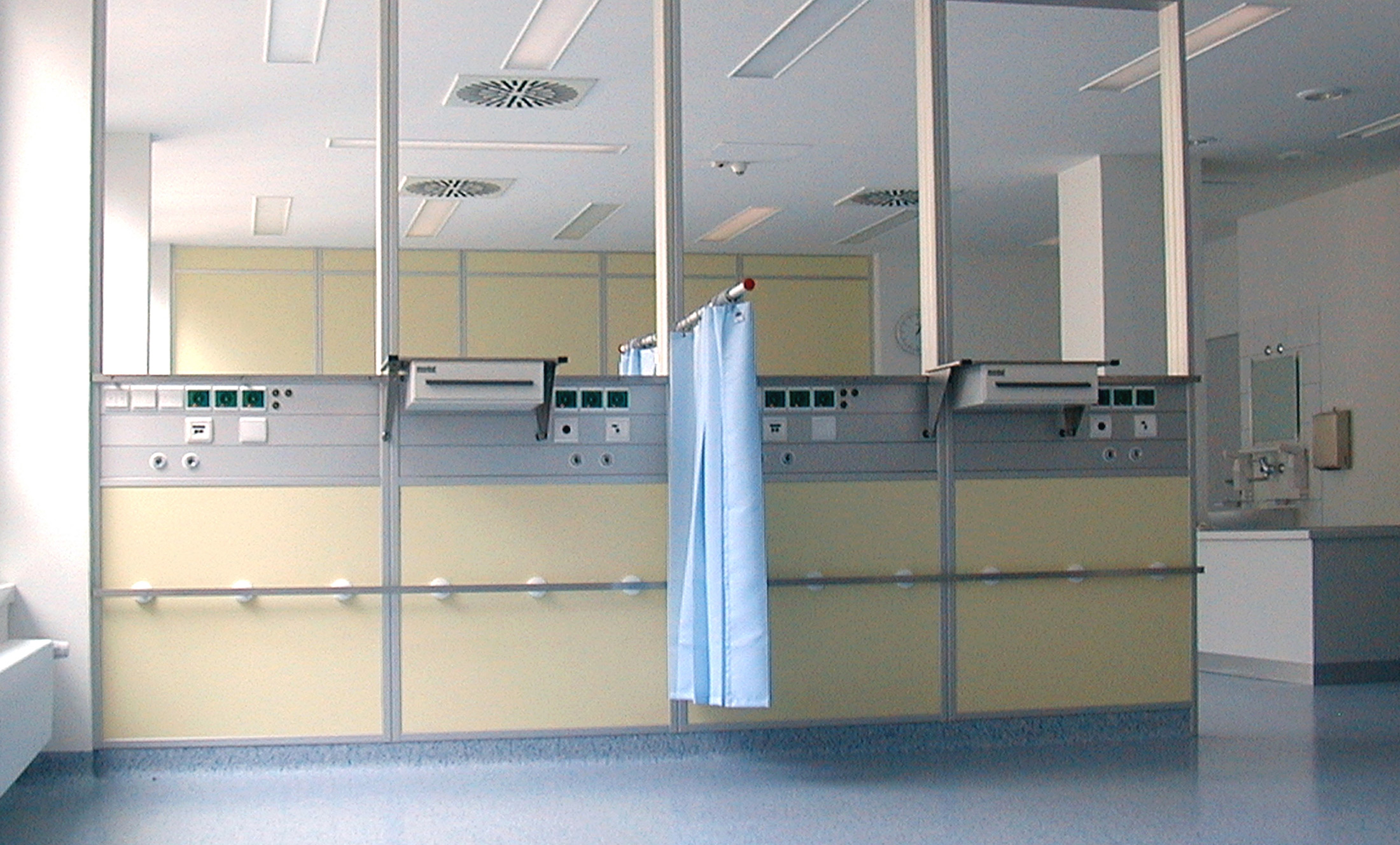

The interior design of your intensive care ward or recovery ward becomes very easy to plan with the customised IZM 1650 partition wall system. Made from high-quality aluminium and available in any electrostatically powder-coated RAL or NCS colour, we plan, deliver and install the system as a turnkey solution including window areas, doors and all installations. Its robust lightweight construction means it can be installed in nearly all buildings without any static problems.

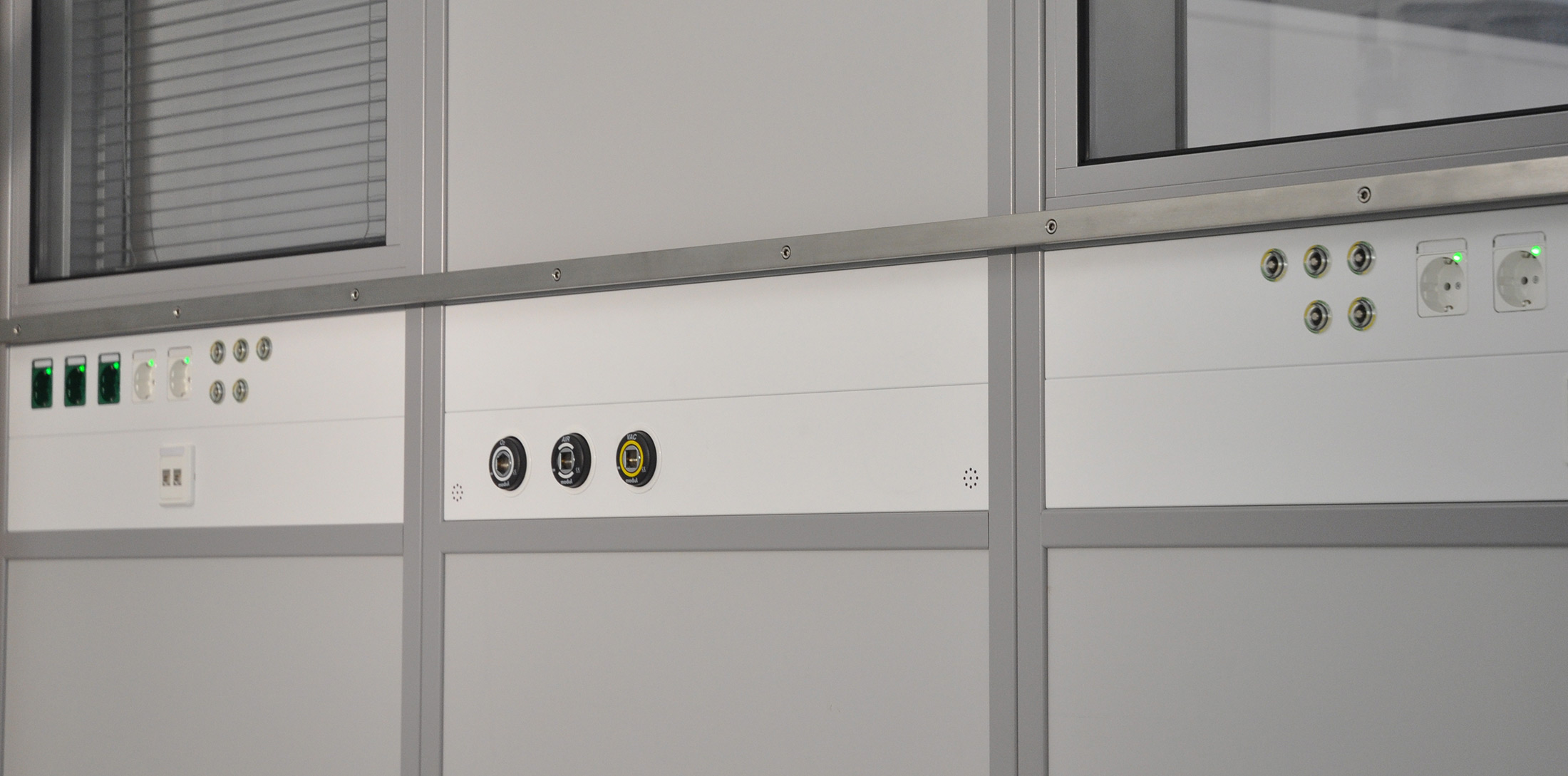

The IZM 2560 system takes account of the particular supply need in intensive care through the possible integration of the IV 1054 (horizontal) and/or IVV 1054 (vertical) supply systems. The connection to the media supply required for this purpose is via the central feed-in point in the suspended ceiling.

Finally the FS 4500 apparatus carrier system can be wall-mounted and enables an ergonomic arrangement of all equipment and which if required can be moved across the entire width of the wall.

The equipment options are almost unlimited. Water supply and hand wash basins, wall-mounted work areas and many other equipment options can also be installed.

We plan and manufacture your partition wall system according to your individual specifications and will be pleased to advise you in the planning phase.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar
CO2: 5 bar
AGSS: 5 bar

General information
Media current feed: From the top
Optional equipment rail: Front

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
