MEV 8000

Application area: Normal care
Product group: Wall supply units (decorative)

Comfort is not an art!

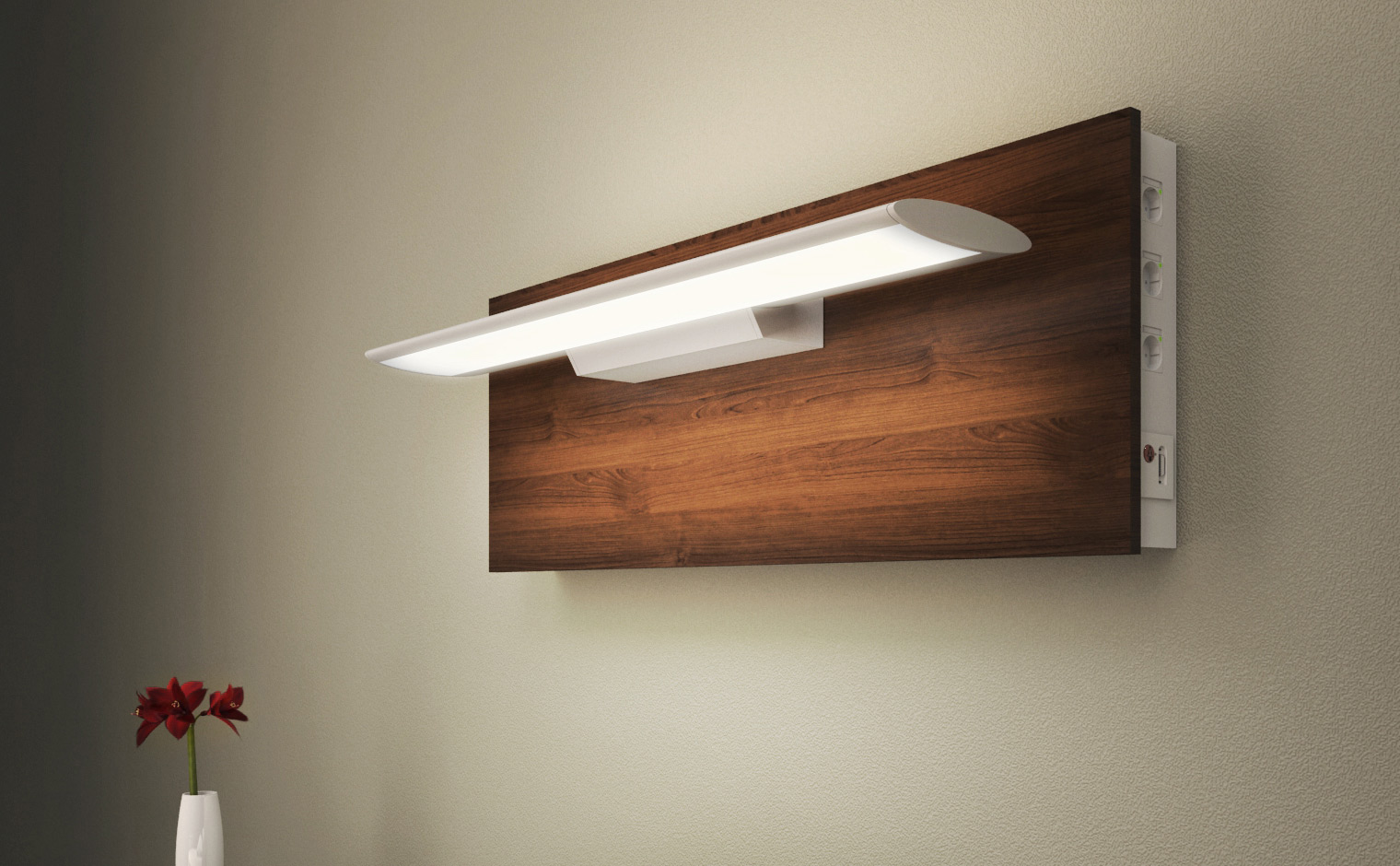

Concealed behind the decorative wall panel of the MEV 8000 is the medical supply technology – accessible from both sides at all times yet completely invisible at first glance.

You can decide for yourself whether you prefer a classic, modern or extravagant style and we will then design the high-quality finished surfaces according to your requirements – with a sophisticated real wood veneer, easy-care plastic surfaces in any colour you want and with digitally printed designs. However, you can also select a variant from our comprehensive standard range.

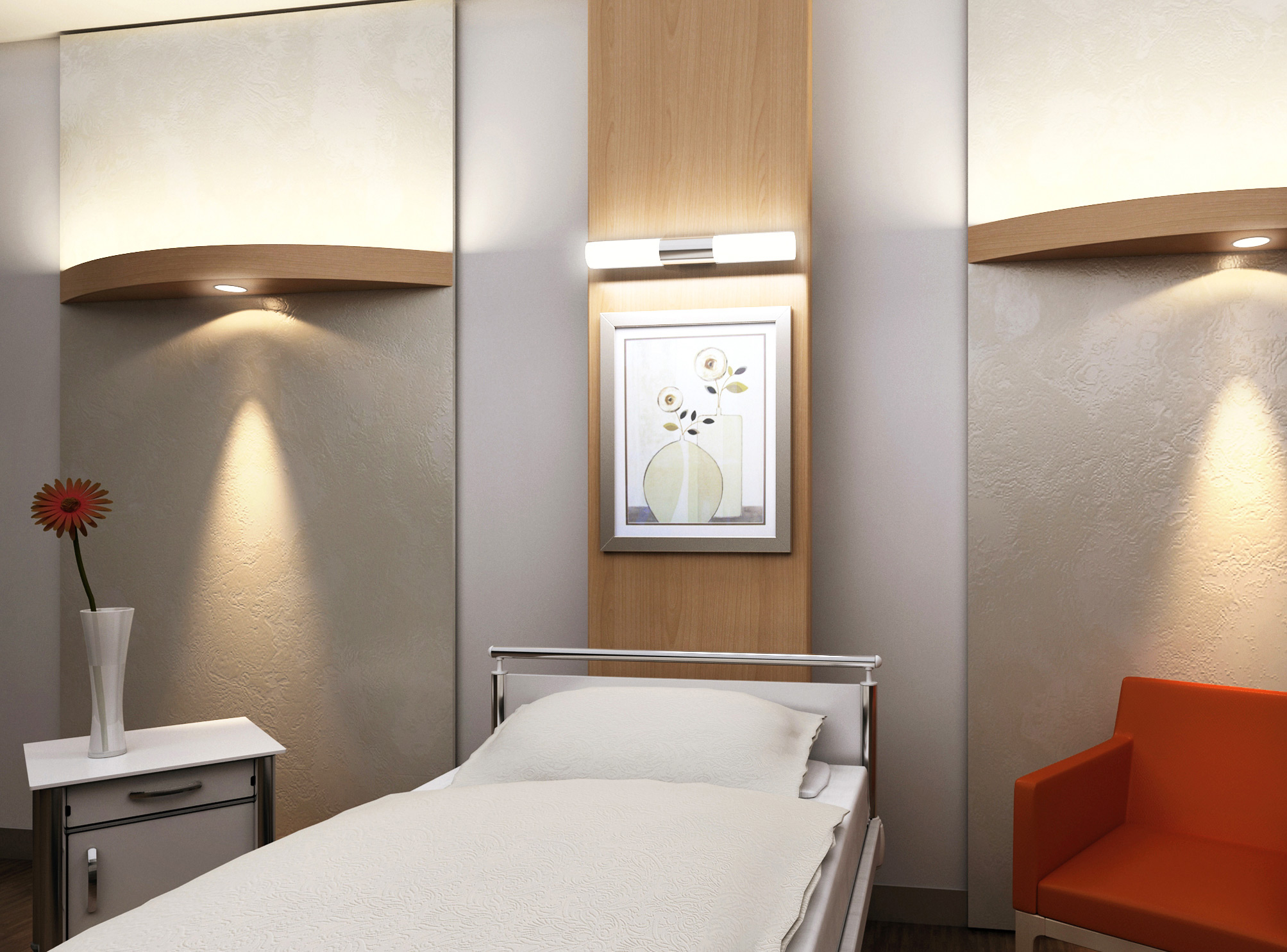

The centrally placed supply units are enhanced with lighting elements which convey a consistent and pleasant atmosphere to the room. Whether it is a question of treatment light, indirect light or a reading light for the patient, everything is possible as are an infinite number of combinations.

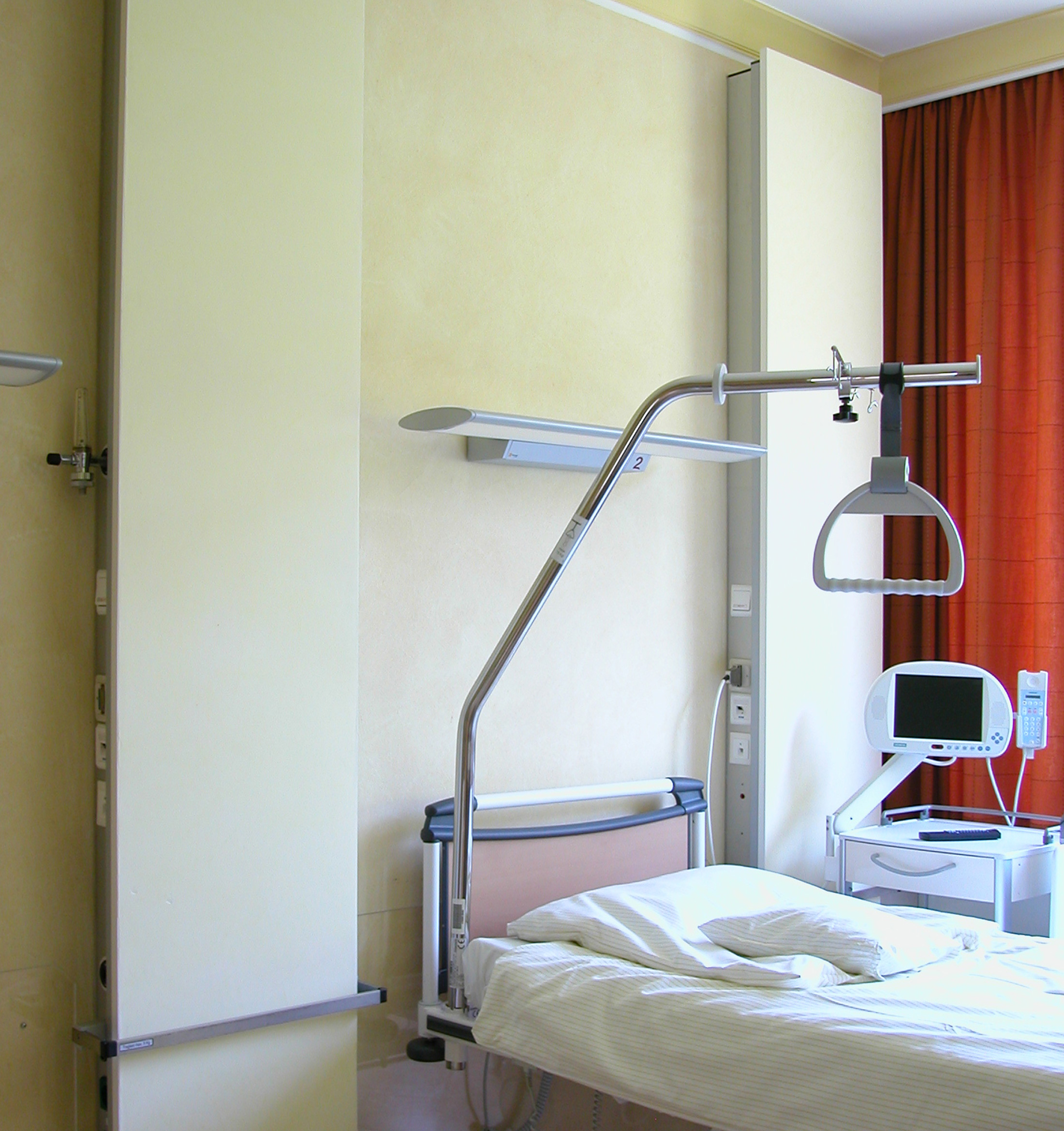

The additional provision of the lateral fold-out carrying systems and/or front apparatus carrier rails, demonstrates the versatility of the MEV 8000 for Normal Care.

Example decors

MEV 8000 Beispieldekore

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology LED downlight (optional)
Nominal voltage: 95 V – 260 V / 50 – 60 Hz
Protection class: II
Operating type: electronic converter (1-3,6 W)
Lamp output: 1 W
Protection type: IP 20

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar

General information
Media current feed: Rear or from top
Décors: HPL-laminate or melamine resin coating
Optional support tubes: Side-mounted, swivel
Optional patient lamp Front-mounted
Additional load: Max. 80 kg

Standard design

Equipment features
high-voltage technology
Read more…

High-voltage current technology
8 mains sockets, brand Peha (COMPACTA)
8 potential equalisation sockets (POAG)

Equipment features
communications technology
Read more…

Communications technology
1 data socket, RJ 45, 2 pcs, brand Peha (COMPACTA)
2 hollow wall sockets, Ø 68mm (e.g. for nurse call button)

Equipment features
medical gas technology
Read more…

Medical gas technology
1 gas tapping point oxygen (O²), brand modul
1 gas tapping point compressed air (Air), brand modul
1 gas tapping point vacuum (Vac), brand modul

General information
Rear feed
Dimensions (W x H x D): 600 mm x 1700 mm x 150 mm
Décor: R 4889 Bella Noce schoko (melamine resin-coated)

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
