moduversa HF plus

Application area: Operating rooms
Product group: Pendant systems OR

Flexible working – at every point in the room!

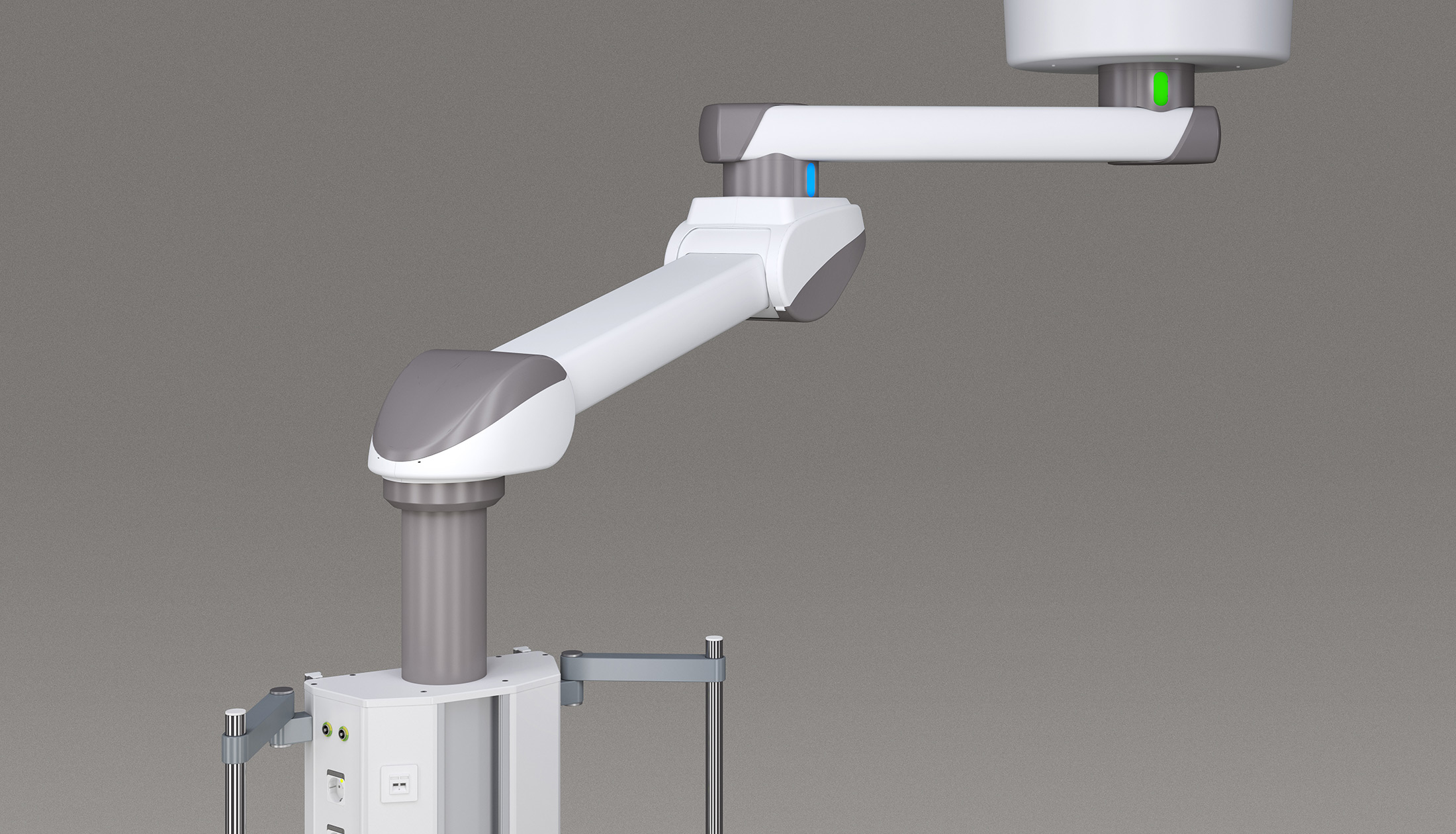

The spring arm of moduversa HF plus can be adjusted to the specific load and enables an effortless height adjustment of the BSP 2500 supply head. The additional swivel arm ensures horizontal flexibility.

This enables the system to position itself through infinite precision adjustments at every point within the operating radius of 2.6 metres. Here the user is supported by an electro-magnetic braking system which through LED signal lamps makes accurate operation easier.

At the maximum arm length of 2.6 metres, the additional load on the arm of the moduversa HF plus is up to 180 kg.

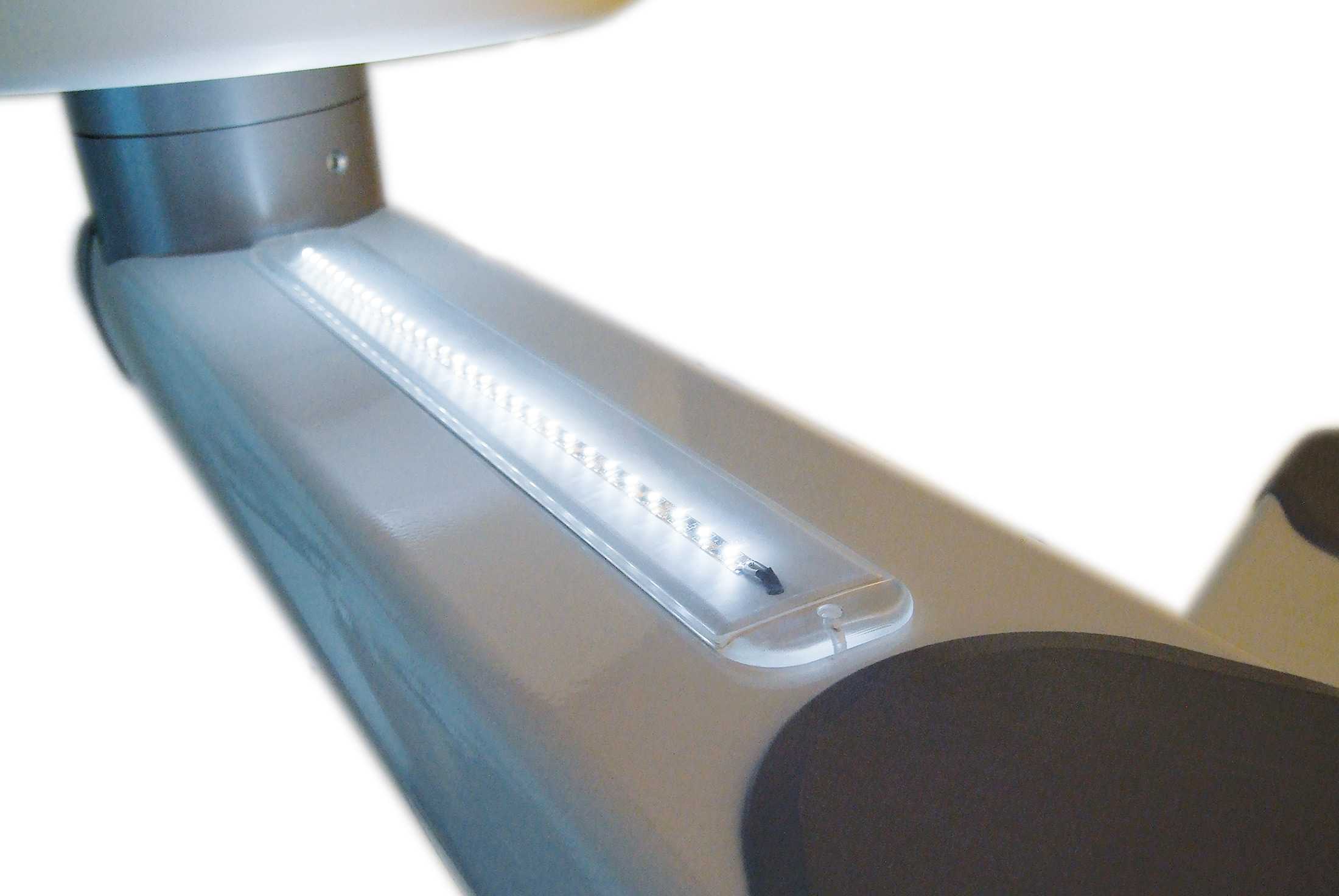

The LED light integrated into the swivel arm ensures optimum illumination of the work area.

Like all moduversa products, moduversa HF plus can be designed as a single or tandem system.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 115 V - 240 V / 50-60 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology indirect RGB lighting
Nominal voltage: DC 12 V
Available design option: From 800 mm arm length
(upper extension arm)

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar Compressed air: 5 bar
Compressed air: 8 bar Vacuum: - 0,8 bar
Laughing gas 5 bar CO2: 5 bar
AGSS: 5 bar Air-Motor: 8 bar

General information
Media current feed: From the top in the support arm
Braking system: Electromagnetic (optional compressed air)
Comfort option: Braking system with BrakeGuide*(optical feedback)
Total additional load of supply unit: Project-related
Height-adjustment: Spring force
* BrakeGuide cannot be combined with compressed air brake

Support arm length
600 mm / 1000 mm
800 mm / 1000 mm
1000 mm / 1000 mm
1200 mm / 1000 mm**
1400 mm / 1000 mm**
1600 mm / 1000 mm**

Max. additional load support arm
180 kg
170 kg / 180 kg*
150 kg / 180 kg*
130 kg / 180 kg*
180 kg*
180 kg*

* Max. additional load with XL-extension arm (optional)
** Not available with compressed air brake

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
