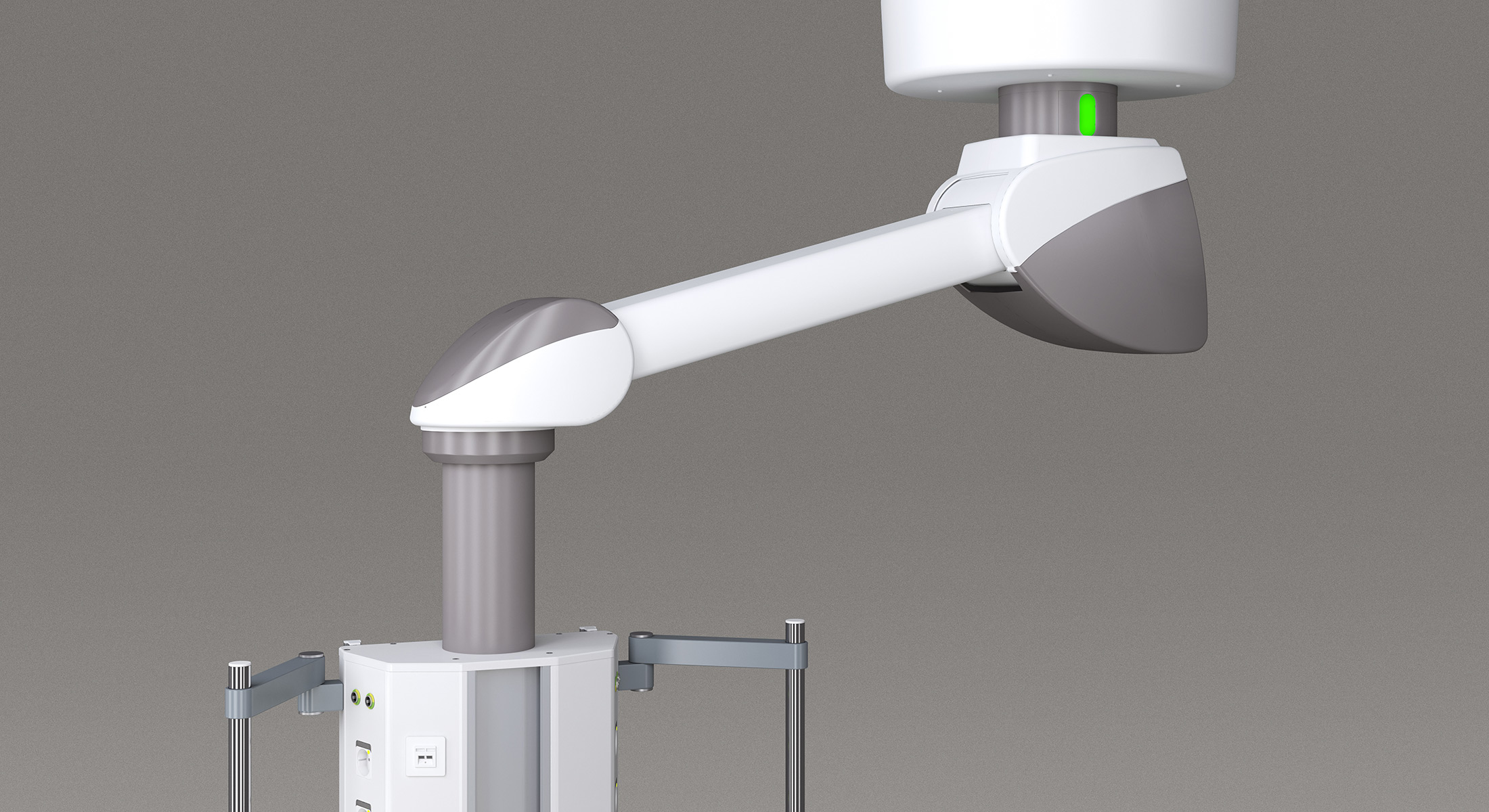

moduversa HM

Application area: Operating rooms
Product group: Pendant systems OR

Gentle positioning without jerks!

The highlight of moduversa HM is the sophisticated bearing system of the joints and particularly in the motor which drives the articulated joint for the vertical positioning.

Through the soft-start drive technology the system starts up extremely gently and moves BSP 2500 supply head including all the monitors and apparatus attached to it into the desired position without any start-up jerking. No wobbling, no dropping of attached items - only gentle gliding into the desired position.

The electromagnetic braking system has LED lights at each joint which makes correct operation considerably easier. The integrated dimmable LED lighting in the horizontal arm improves illumination of the work area.

The maximum arm load capacity of 150 kg is sufficient for most medical applications.

And by the way, all products in the moduversa range have been designed so they also retain their respective position in the event of power failures and can even be positioned by hand.

moduversa HM can be designed as a single or tandem system.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 115 V - 240 V / 50-60 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Compressed air: 8 bar
Vacuum: - 0,8 bar
Laughing gas 5 bar
CO2: 5 bar
AGSS: 5 bar
Air-Motor: 8 bar

General information
Media current feed: From the top in the support arm
Braking system: Electromagnetic (optional compressed air)
Comfort option: Braking system with BrakeGuide *(optical feedback)
Total additional load of supply unit: Project-related
Height-adjustment: Electric motor
* BrakeGuide cannot be combined with compressed air brake

Support arm length
1000 mm

Max. additional load support arm
150 kg / 250 kg*

* Max. additional load with XL-bearing (optional)

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
