moduversa

Application area: Intensive care
Product group: Pendant systems

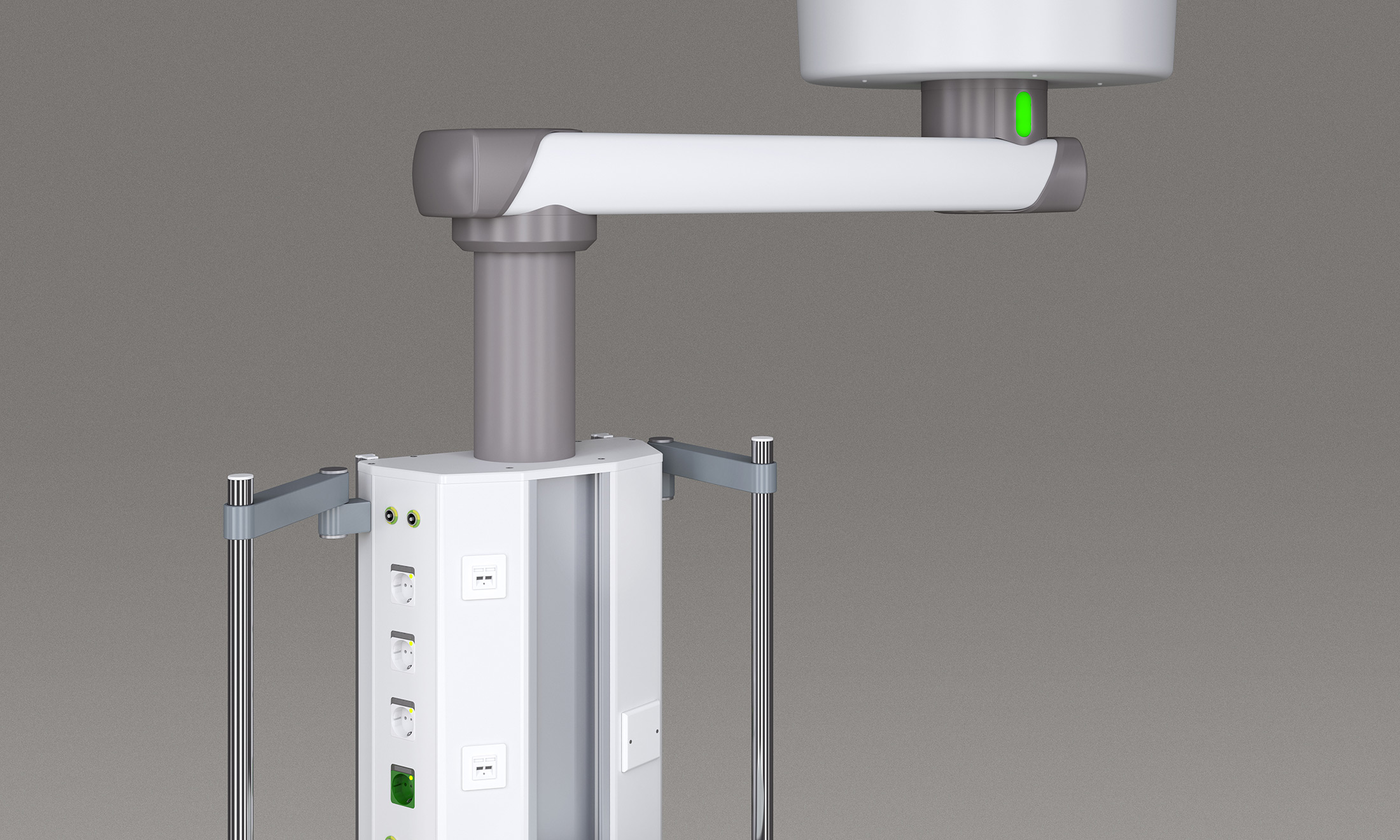

Turn and tilt it just as you wish

So you can provide the best possible care for your intensive care patients in every situation, we have developed the flexible ceiling-mounted moduversa supply system for heavy loads.

Through its sophisticated bearing and mounting, moduversa can be moved into every desired position with little effort and its maintenance-free electromagnetic braking system ensures a long service life and low operating costs.

Based on your requirements we manufacture your ­moduversa as a single or tandem system. You can choose the colour of the supply heads from the RAL/NCS colour scales. Arms can be ordered in either RAL 9010 or 9002. Furthermore, with an arm length of 800 mm or more, moduversa can be equipped with LED lighting in the arm. A wide range of accessories such as retractable keyboards, drawers and work surfaces complete the system.

moduversa can be designed as a single or tandem system.

BSP 2500

BSP 2500 can be horizontal or vertical in design. BSP 2500 is used under moduflex nova as the horizontally movable supply trolley.

In combination with our support arm system, the ceiling supply units of the moduversa range are created.

BSP 2500 incorporates all the connections for full low voltage and high voltage current, data and communications technologies and medical gases. Every medical accessory can be adapted through the optional tubes and the front-integrated rails.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 115 V - 240 V / 50-60 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology indirect RGB lighting
Nominal voltage: DC 12 V
Available design option: From 800 mm arm length

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar
AGSS: 5 bar

General information
Media current feed: From the top in the support arm
Braking system: Electromagnetic (optional compressed air)
Comfort option: Braking system with BrakeGuide* (optical feedback)
Total additional load of supply unit: Project-related
* BrakeGuide cannot be combined with compressed air brake

Support arm length
600 mm
800 mm
1000 mm
1200 mm

max. additional load support arm
640 kg / 1000 kg*
470 kg / 820 kg*
370 kg / 650 kg*
300 kg / 540 kg*

* Max. additional load XL-variants (optional)

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
