moduversa

Application area: Operating rooms
Product group: Pendant systems OR

Complex technology elegantly packed

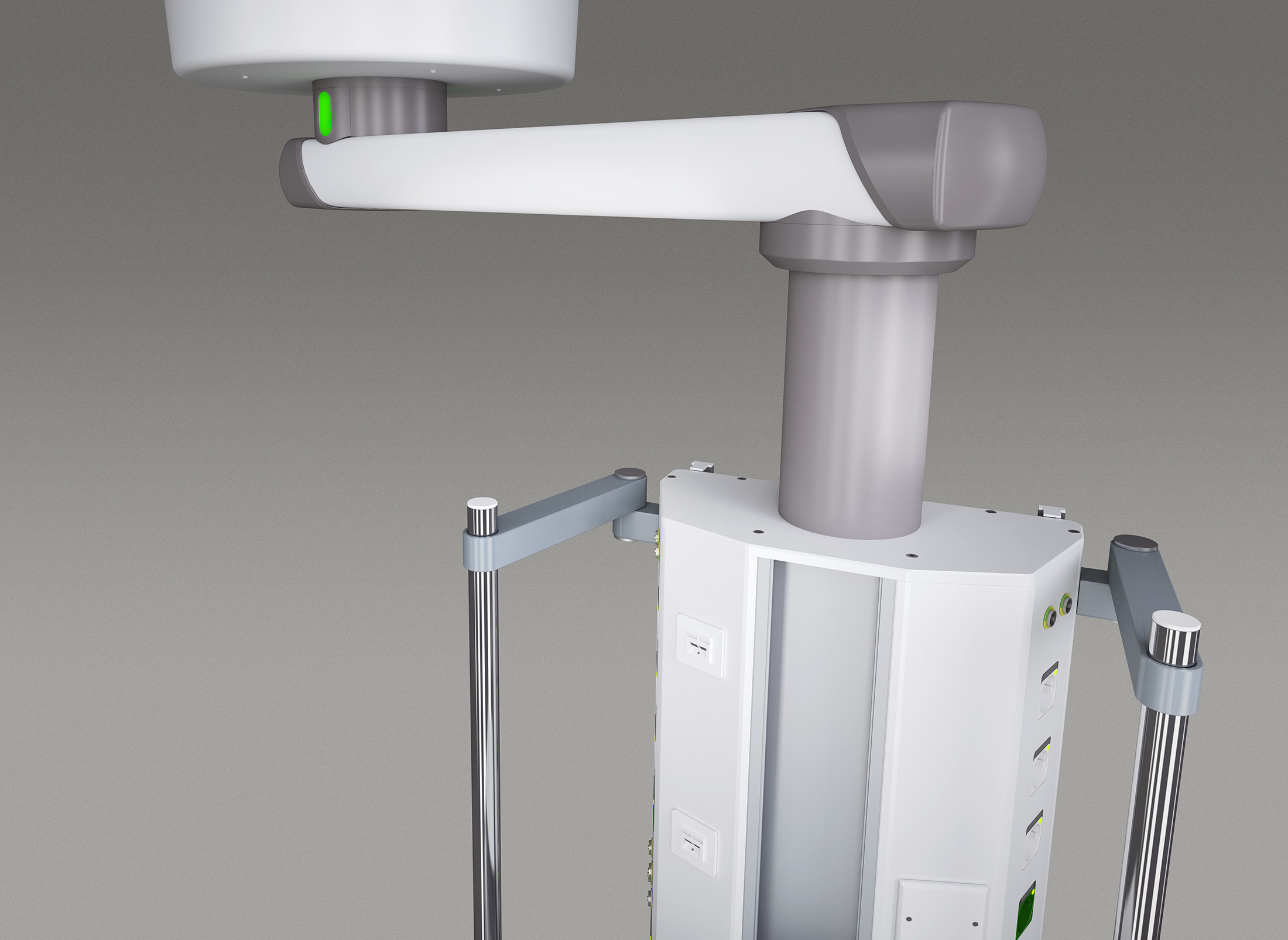

Even the basic model of the moduversa range combines all the benefits of the product family for heavy loads. The sleek and elegant design of the support arms in its robust design provides huge assembly capacities for media feeds to the BSP 2500 supply head.

The maintenance-free bearing system of the swivel joints makes the system easy to swivel and an integrated electro-magnetic brake system facilitates accurate positioning without readjustments. However, on request the system can also be designed to run pneumatically.

The high maximum load means the supply system can be planned for use with nearly all apparatus placements.

moduversa can be designed as a single or tandem system.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 115 V - 240 V / 50-60 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology indirect RGB lighting
Nominal voltage: DC 12 V
Available design option: From 800 mm arm length

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Compressed air: 8 bar
Vacuum: - 0,8 bar
Laughing gas 5 bar
CO2: 5 bar
AGSS: 5 bar
Air-Motor: 8 bar

General information
Media current feed: From the top in the support arm
Braking system: Electromagnetic (optional compressed air)

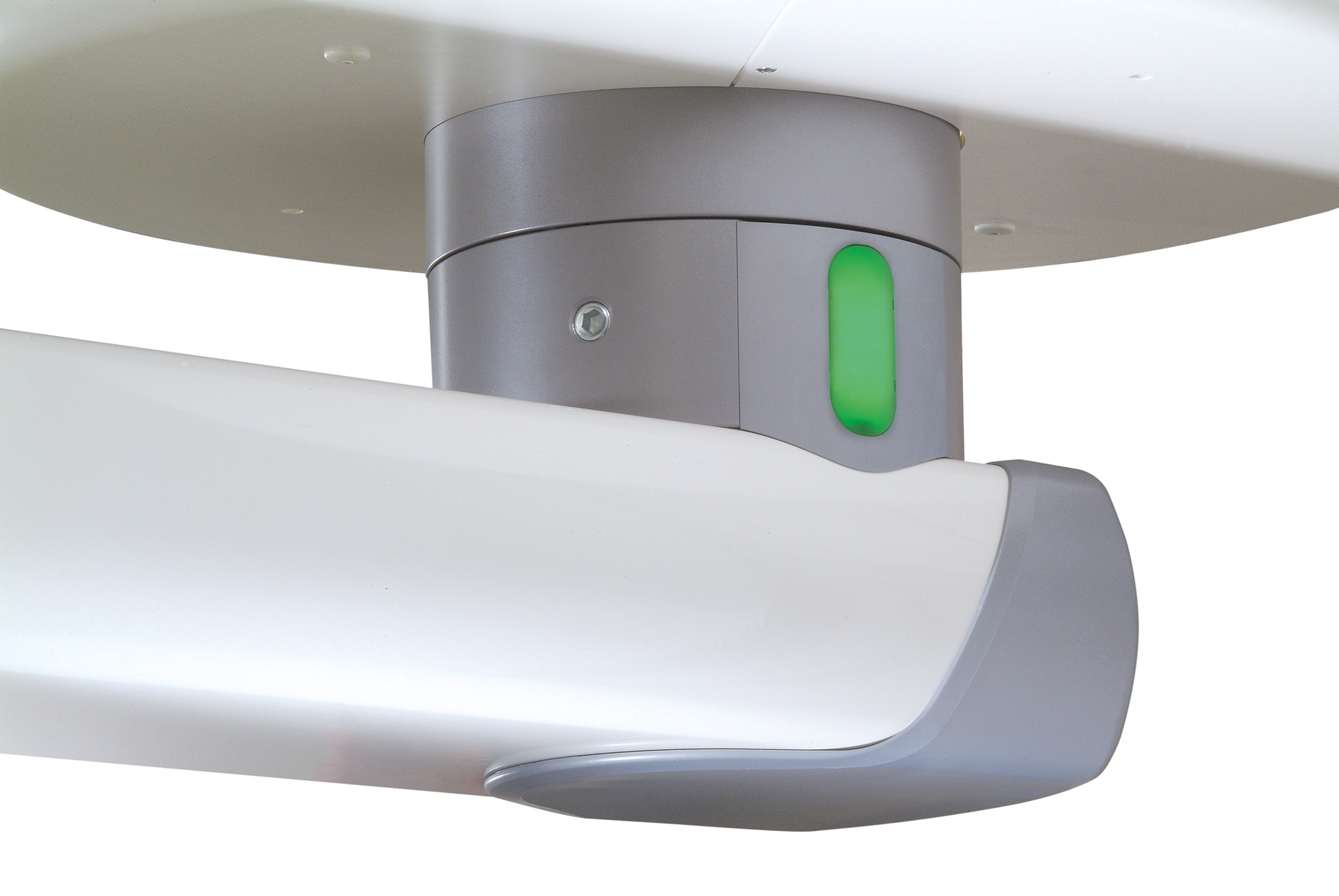

Comfort option: Braking system with BrakeGuide* (optical feedback)
Total additional load of supply unit: Project-related
* BrakeGuide cannot be combined with compressed air brake

Support arm length
600 mm
800 mm
1000 mm
1200 mm

Max. additional load support arm
640 kg / 1000 kg*
470 kg / 820 kg*
370 kg / 650 kg*
300 kg / 540 kg*
* Max. additional load XL-variants (optional)

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
