ambient cube

Application area: Normal care
Product group: Wall supply units (decorative)

The beauty of simplicity

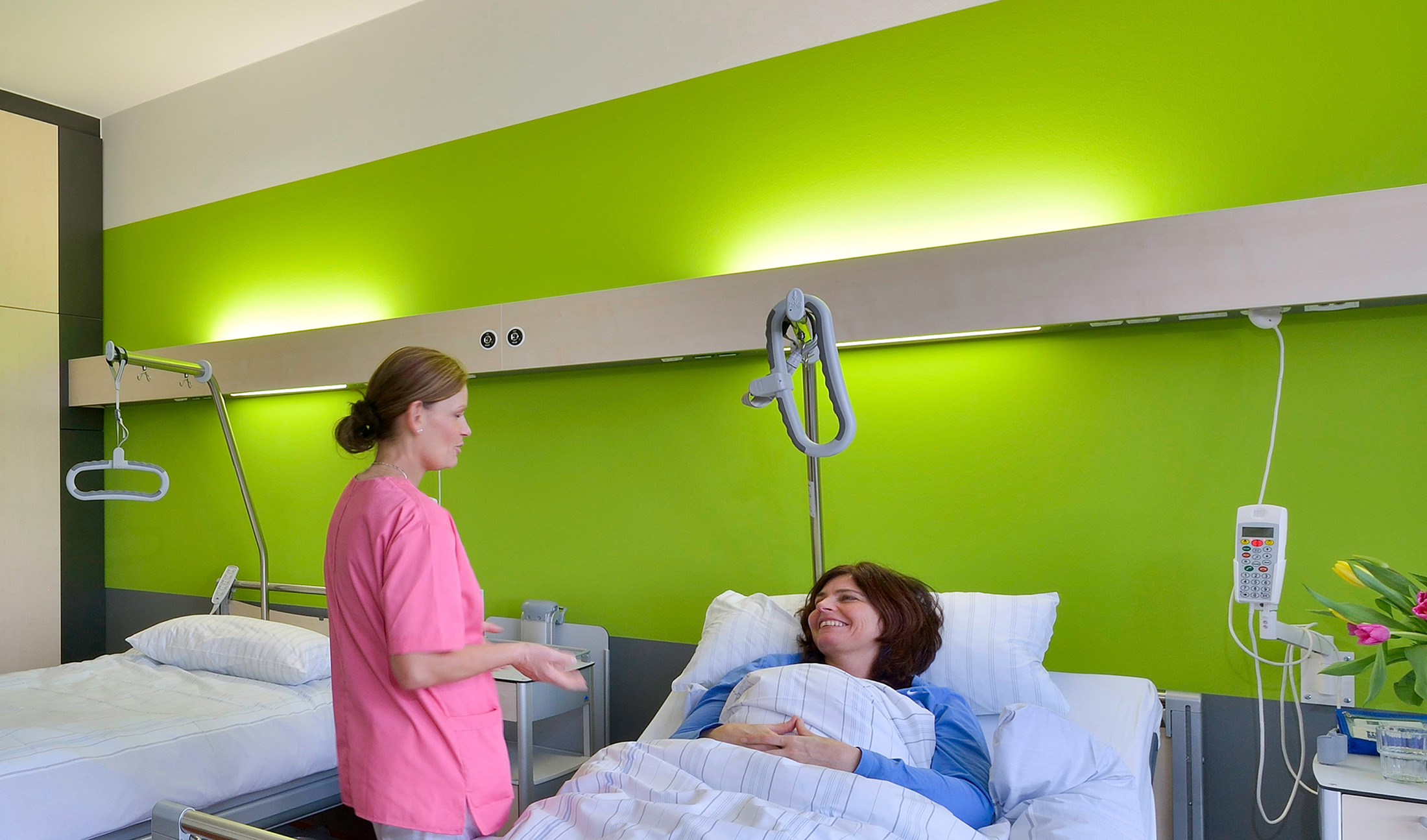

Who says functional supply solutions in hospitals must be sterile and boring? ambient cube proves the opposite by combining modern design with high-quality materials and functional technology to create a real eye catcher.

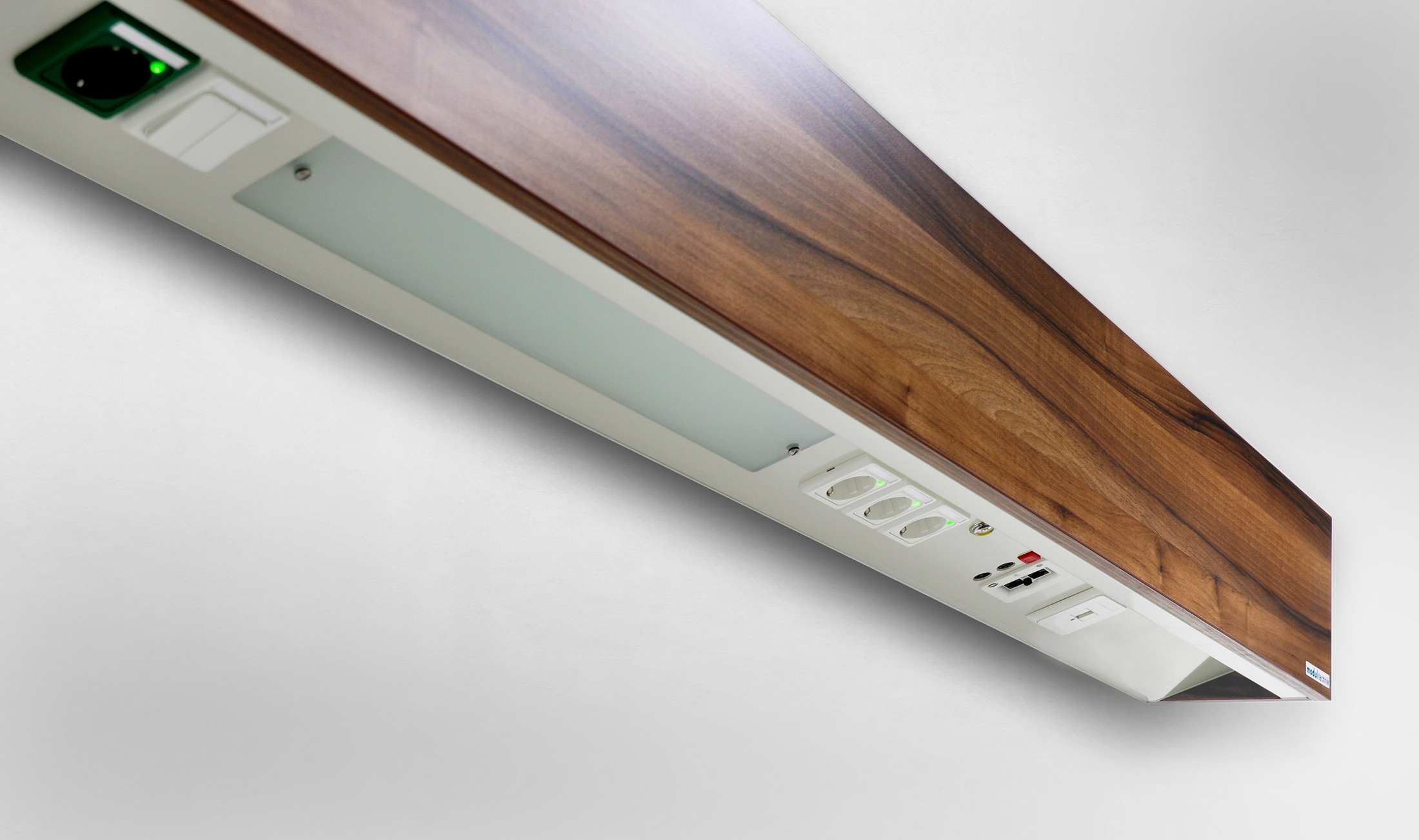

Take a look for yourself. As you can see, you see nothing! That is apart from fine wood surfaces, since all the electrical installation elements disappear out of view underneath the module.

As is the case with all our products, ambient cube can be furnished according to your specific wishes and equipped with a wide range of lighting options. You can of course also coordinate housing colours and décors individually to your own room design and to the other furniture.

Example decors

MEV 8000 Beispieldekore

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology
Nominal voltage: 230 V - 240 V / 50 Hz
Protection class: I
Connection type: Plug connection
Connection cross-section: 1.5mm² max.
Protection type: IP 20

Reading light (LED): Output ≙ 23 W
Reading light (T5 fluorescent tubes): Output ≙ 24 W / 2 x 24 W
Indirect lighting (LED): Output ≙ 53 W
Indirect lighting (T5 fluorescent tubes): Output ≙ 2 x 39 W
Night light (LED): Output ≙ 4.3 W

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar

General information
Media current feed: Rear, from top or side
Décors: HPL-laminate or melamine resin coating
Optimum assembly height: 1650mm (rail bottom edge)
Optional light control: DALI DIM

Standard design

Equipment features
high-voltage technology
Read more…

High-voltage current technology
6 mains sockets, brand Peha (COMPACTA)
6 potential equalisation sockets (POAG)

Equipment features
communications technology
Read more…

Communications technology
1 data socket, RJ 45, 2 pcs, brand Peha (COMPACTA)
2 hollow wall sockets, Ø 68mm (e.g. for nurse call button)

Equipment features
lighting technology
Read more…

Lighting technology
Reading light (T5 fluorescent tubes): Output ≙ 24 W
Indirect lighting (T5 fluorescent tubes): Output ≙ 2 x 39 W

Equipment features
medical gas technology
Read more…

Medical gas technology
1 gas tapping point oxygen (O²), brand modul
1 gas tapping point compressed air (Air), brand modul
1 gas tapping point vacuum (Vac), brand modul

General information
Rear feed
Dimensions (W x H x D): 1800 mm x 200 mm x 205 mm
Décor: R 4889 Bella Noce schoko (melamine resin-coated)

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
