IME 1500 & IME duplex

Application area: Intensive care
Product group: Wall supply units

Standing out in the literal sense of the word

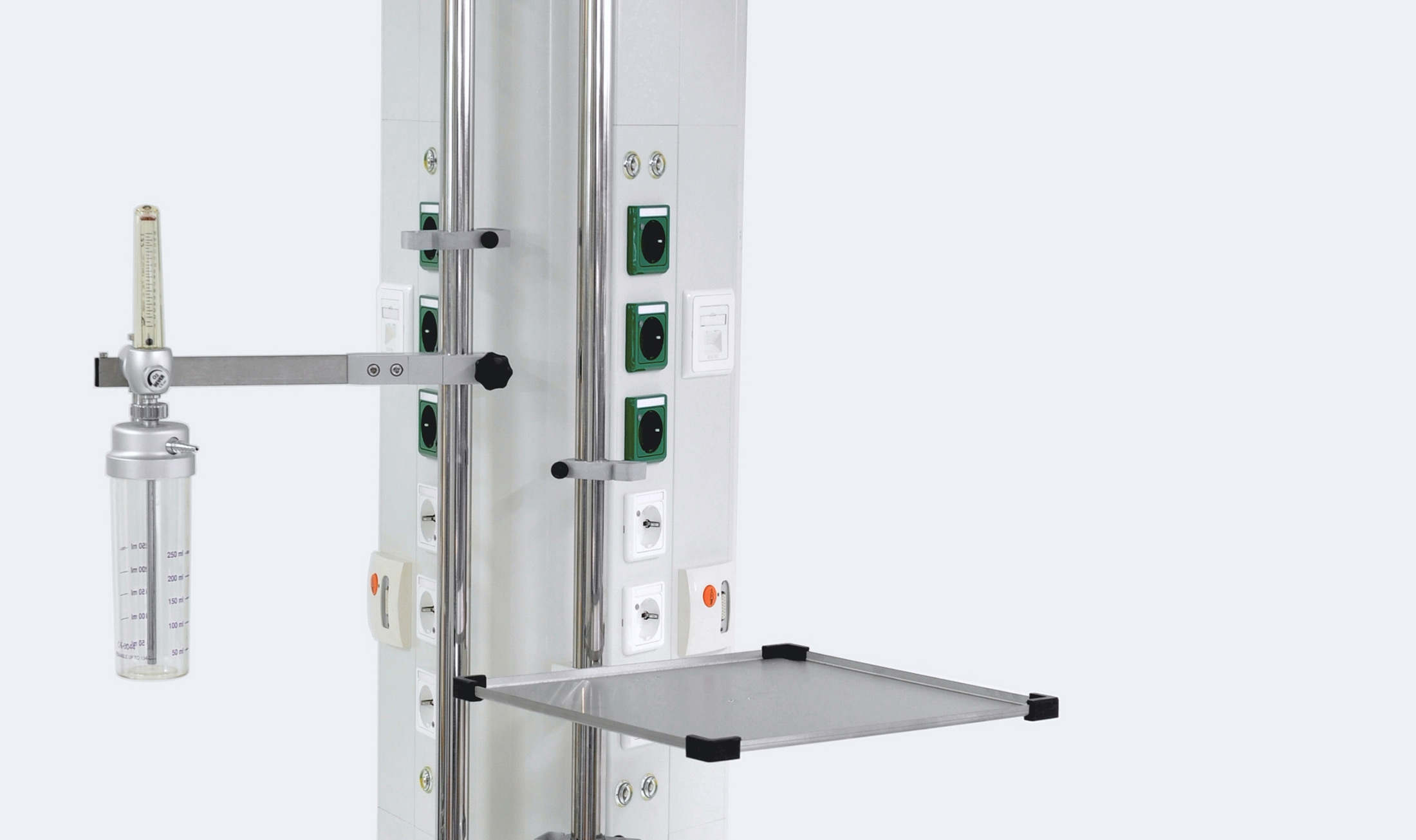

Working at patients‘ beds in emergency admissions, intensive care and also in intermediate care, requires easily accessible media connections, which enable fast and ergonomic apparatus and medication changes. The smart solution of the vertically designed IME 1500 and IME duplex is that they meet your staff as they “stand out” at an angle from the wall.

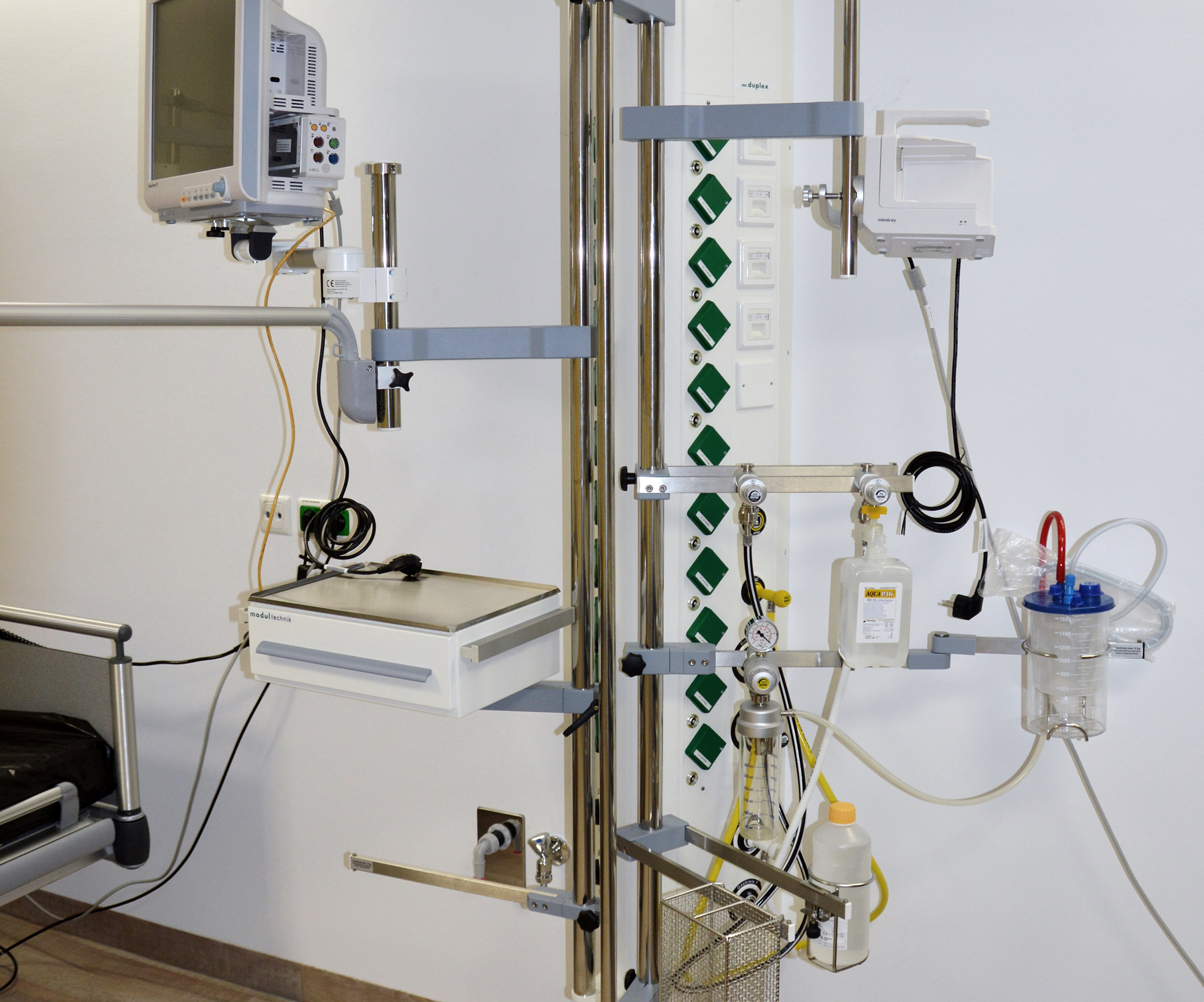

Both systems can be equipped with medical gases, high voltage current, data and communications technologies according to your specifications. Whereas the IME 1500 connections are one-sided, on the side opposite to the patient‘s bed, IME duplex has two media sides and can therefore be placed in the middle between two patient beds.

The comprehensive range of accessories of stable stainless steel support tubes and matching apparatus carriers, lighting elements and attachments for infusions, makes the IME range a compact and multi-purpose supply system for many areas of application.

We plan the equipment for IME systems on an individual basis and adapt it to the respective area of application.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology LED downlight (optional)
Nominal voltage: 95 V – 260 V / 50 – 60 Hz
Protection class: II
Operating type: electronic converter (1-3,6 W)
Lamp output: 1 W
Protection type: IP 20

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar
AGSS: 5 bar

General information
Media current feed: Rear or from top
Additional load IME 1500: Max. 80 kg
Additional load IME duplex: Max. 160 kg

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
