IV 1054

Application area: Intensive care
Product group: Wall supply units

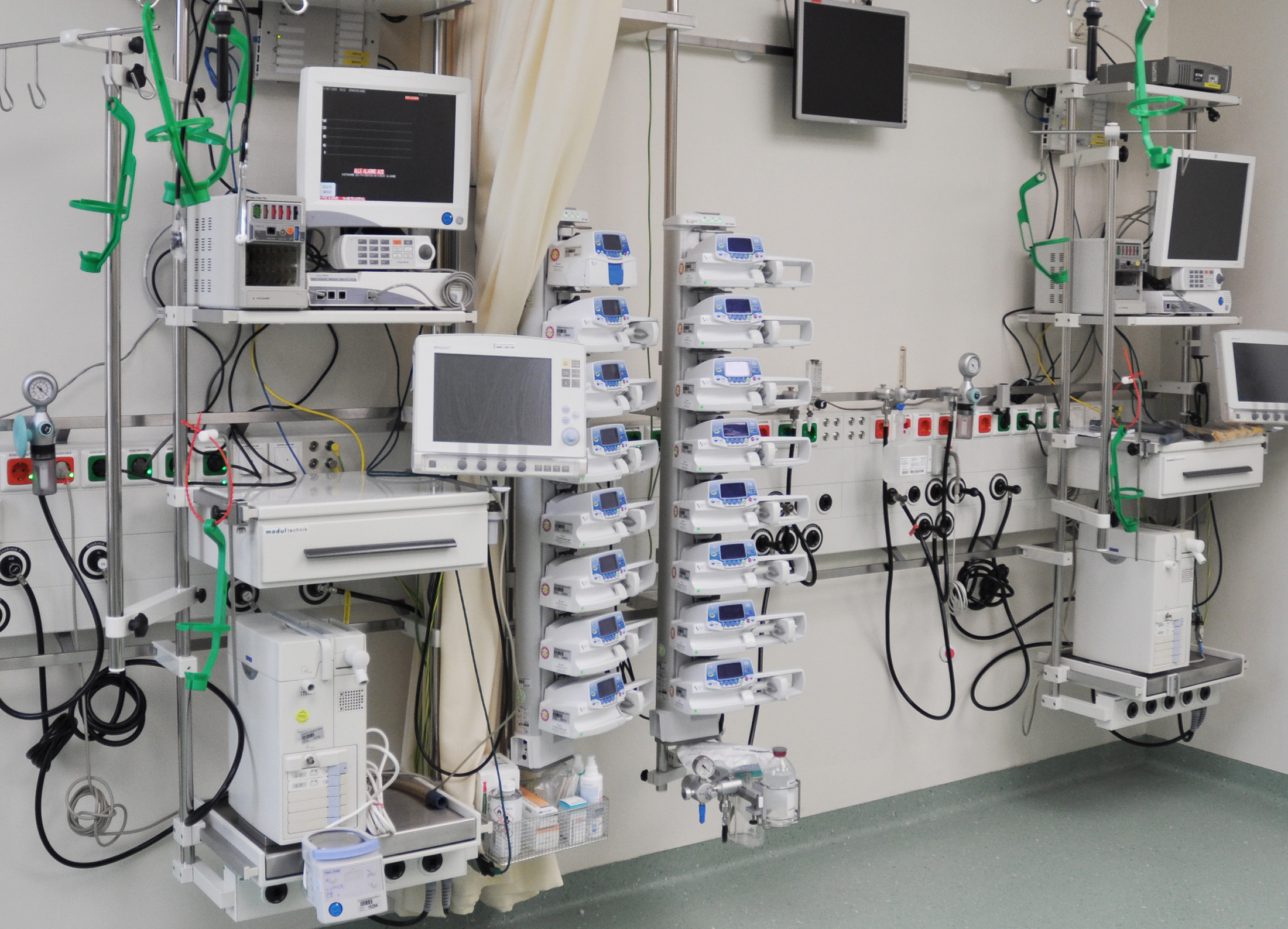

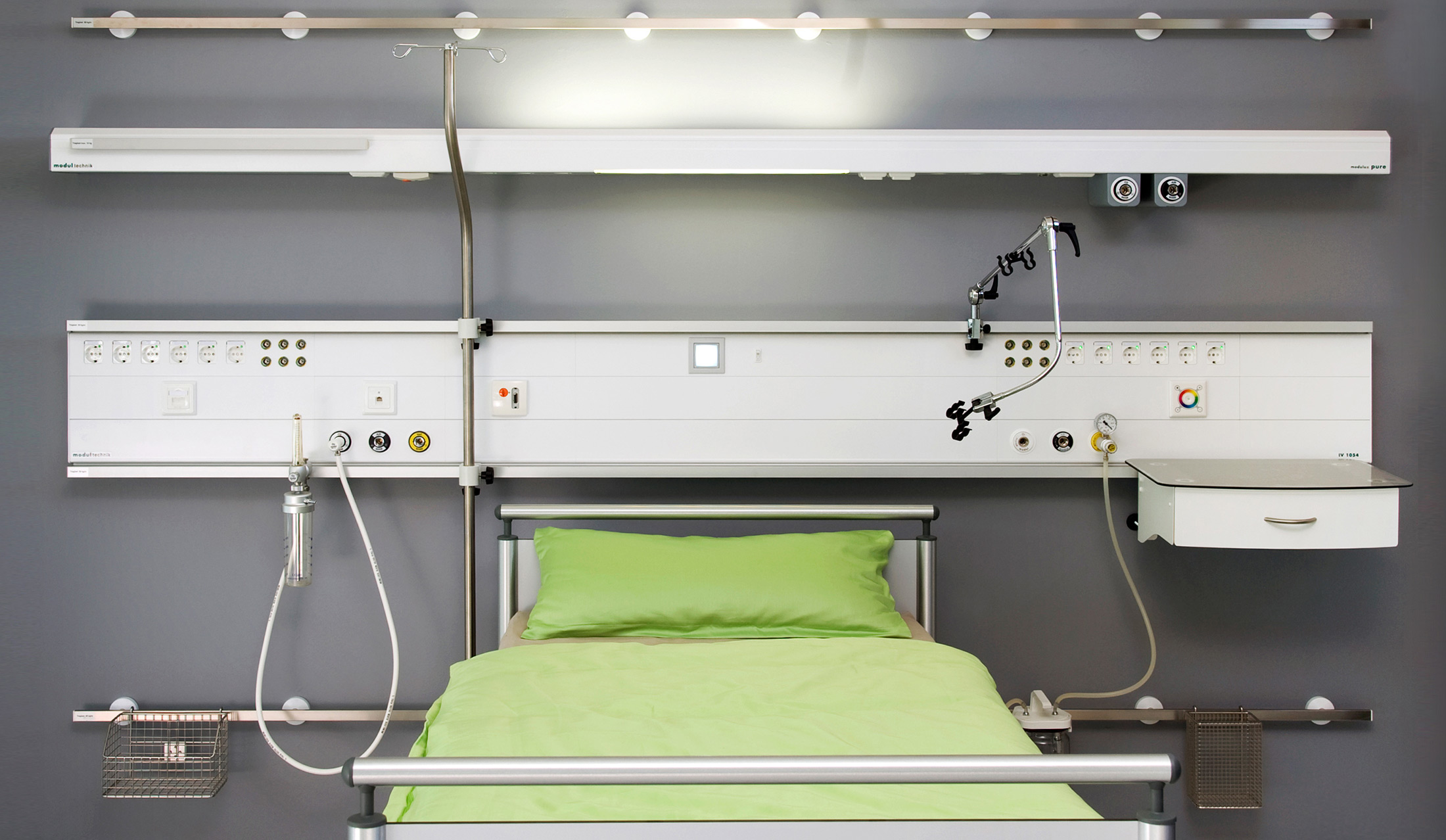

Our intensive care classic

The benefits of the IV 1054 can be briefly summarised as follows – a clear design which can be equipped with all the media required for intensive care and the recovery room and which is robustly finished and mounted connection-ready and with a media feed-in at a central input point.

In the same way as all modul  technik products, IV 1054 offers maximum flexibility through a wide-ranging accessories range. Apparatus carrier systems and equipment rails enable a very accessible, space-saving and transparent installation of all apparatus, infusion and lighting elements. However, there is also the option to order the system in single, double, triple channel versions. In all variants the media are physically separated from each other by a multi-chamber system which increases the functional safety. We plan medical gases, high voltage current, data and communications technologies according to your needs. modulux pure is the ideal enhancement as a lighting solution.

And we are pleased to take your design wishes into account. We design the screw-free and thereby safe and hygienically designed aluminium surfaces to be either anodised or electrostatically powder-coated in any RAL or NCS colour.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar
CO2: 5 bar
AGSS: 5 bar

General information
Media current feed: Rear, from top or side
Optional equipment rail: Above and below
Material of optional equipment rail: Stainless steel or aluminium
Number of media channels: One to four
Additional load: max. 50 kg/m

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
