sinus

Application area: Normal care
Product group: Wall supply units (classic)

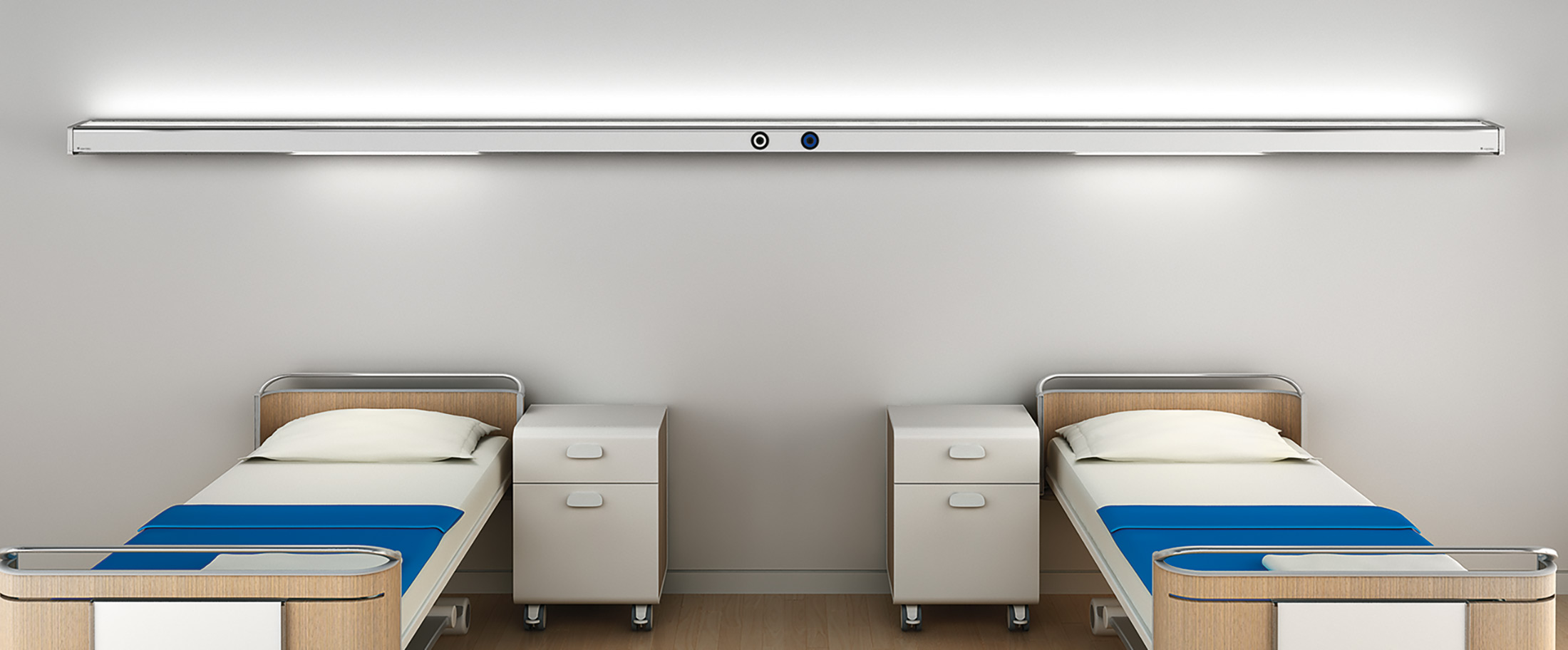

Minimalist design. Maximum functionality.

The patient’s well-being greatly influences the progress of recovery. Optimal lighting of the room essentially contributes to the patient feeling safe and snug even in an unfamiliar environment. At the same time, perfect lighting conditions need to be created in patient rooms for nursing staff and doctors. These are differing requirements easily met by sinus: depending on whether LED modules are switched individually or jointly, sinus assumes the task of reading, ambient or examination lighting.

The electrically movable LED boards inside the horizontal supply unit allow for maximum flexibility when determining room layouts: the lighting can be adjusted to the arrangement and number of beds using a selector switch. To preserve the uncluttered appearance of sinus, all supply components except for the gas outlets are recessed into the underside.

Also accessories such as infusion holders and bed separators can be variably and quickly adapted in a groove on the bottom of the unit.

sinus is a technological supply system for nursing areas. Owing to its plain design as well as the flexibility of its functions, the system will adapt to the most varied of interiors. The carefully manufactured details and the surface finish provide for top comfort.”

sinus basic

sinus basic

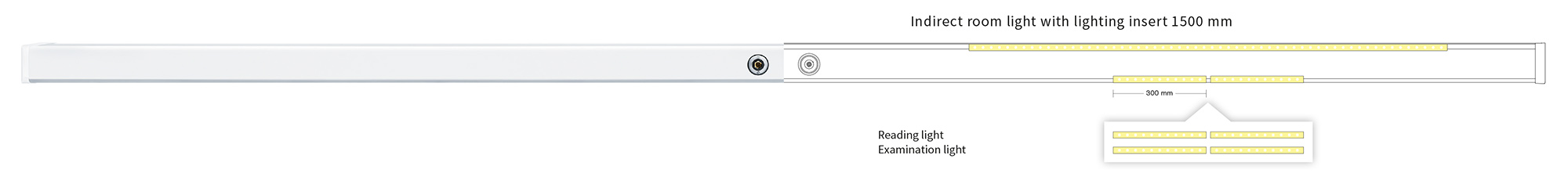

Thanks to individually switchable LED modules inside the supply unit, sinus basic effortlessly copes with various lighting tasks: two centrally placed LED modules with direct light distribution for reading light provide for high-quality illumi­nation of the bed and reading area. An LED insert, extendable at will and emanating indirect light in an upward direction, allows for pleasantly diffuse room lighting. The combined switching of reading light and room light creates perfect lighting conditions for examinations.

sinus basic

sinus move
Just like sinus basic, sinus move assumes various lighting tasks according to the switching mode of the direct and indirect LED modules. In doing so, the horizontal supply unit provides perfect lighting conditions for patients and staff. The lighting solution owes its name “move” to the four integrated LED modules for reading light: the LED modules with a length of 300 mm may be switched along the supply unit through a selector switch. This allows for better illumination of the patient’s bed and flexible arrangement of the beds.

sinus basic

sinus flex

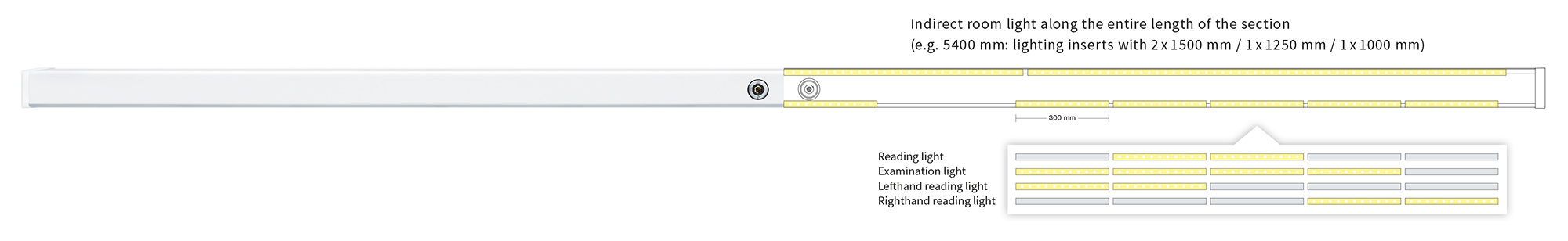

sinus flex opens up totally new freedom with respect to room design. LED modules with indirect light distribution that extend along the entire length of sinus flex provide for perfect illumination of the room down to the last corner. Generously fitted with several LED modules with direct light distribution, almost completely free arrangement of the beds in the room is possible. Thanks to this flexibility, sinus flex also assumes, for instance, the lighting and medical supply of a third bed in two-bed rooms. Depending on the switching of the direct and indirect LED modules, the system will always supply the perfect lighting scene for the respective situation.

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
