moduversa plus

Application area: Intensive care
Product group: Pendant systems

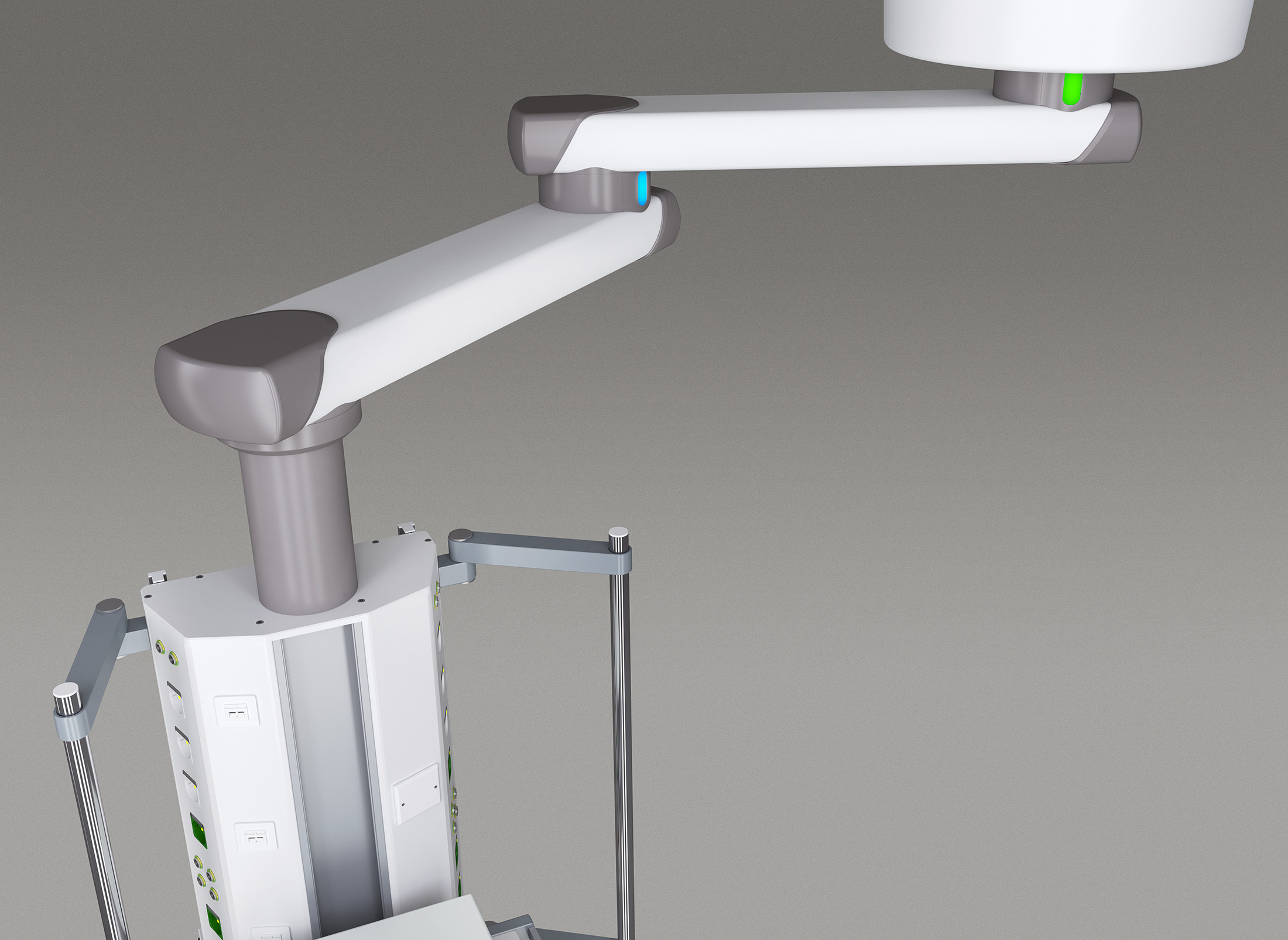

More freedom of movement through two arms

A modern, streamlined design and high carry loads for attaching a wide range of medical apparatus are the distinguishing features of all moduversa models. The additional benefit of moduversa plus is an additional swivel and a second arm which is used to move the supply head even more flexibly into position. With its possible operating radius of over two metres, any point can be reached with precision.

The inner values are the same as for the moduversa, namely extremely light and accurate positioning through a sophisticated bearing and electromagnetic braking system; high attachment capacity for media feeds on the supply head and a carry load which can withstand additional medical apparatus, retractable keyboards and drawer systems without any loss to its mobility.

We comply with your requests as far as the colour scheme of the BSP 2500 is concerned since the electrostatic powder coating can be supplied in all colours from the RAL/NCS scales. Arms can be designed in either RAL 9010 or 9002.

moduversa can be designed as a single or tandem system.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 115 V - 240 V / 50-60 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology indirect RGB lighting
Nominal voltage: DC 12 V
Available design option: From 800 mm arm length

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar Compressed air: 5 bar
Vacuum: - 0,8 bar AGSS: 5 bar

General information
Media current feed: From the top in the support arm
Braking system: Electromagnetic (optional compressed air)
Comfort option: Braking system with BrakeGuide *(optical feedback)
Total additional load of supply unit: Project-related
* BrakeGuide cannot be combined with compressed air brake

Support arm length
600 mm / 600 mm
600 mm / 800 mm
800 mm / 800 mm
800 mm / 1000 mm
1000 mm / 1000 mm
1200 mm / 1000 mm**
1200 mm / 1200 mm**
1400 mm / 1100 mm**
1400 mm / 1200 mm**
1600 mm / 1000 mm**
* Max. additional load with XL-extension arm (optional)
** Not available with compressed air brake

max. additional load support arm
300 kg / 530 kg*
260 kg / 470 kg*
220 kg / 390 kg*
190 kg / 330 kg*
170 kg / 300 kg*
150 kg / 270 kg*
130 kg / 240 kg*
240 kg*
200 kg*
200 kg*

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
